Magnetostrictive Liquid Level Meter

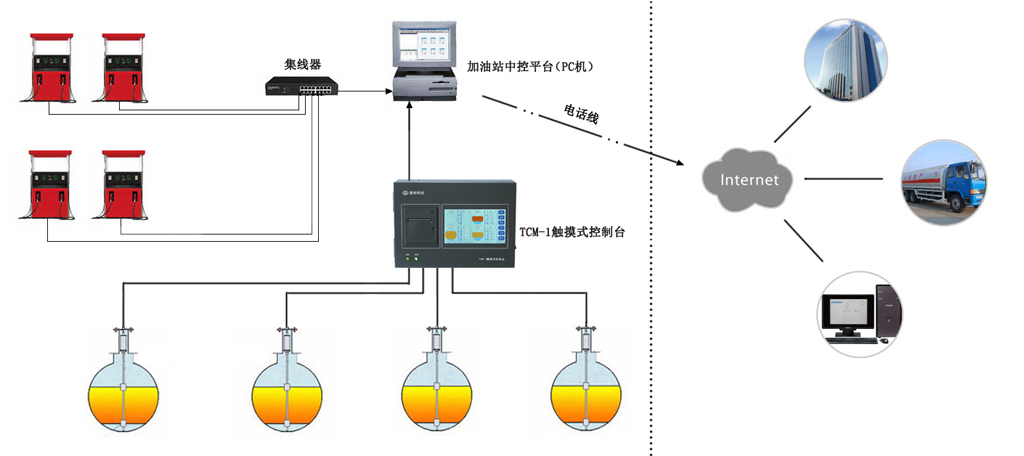

Magnetostrictive Liquid Level Meter for gas stations produced by Guihe is consist of Probe and Touch Control Console.
★ Probe SYW-A
1. The probe consist of:
Magnetostrictive probe fully-enclosed.
Electronic Pod which is using for data measuring and transforming.
Floater, made according to the product.
2. Features:
Safety: ExiaIIBT4 (Intrinsically safe) issued PCEC
Accuracy: liquid level accuracy reach to ±0.5mm
Stability: strong anti-jamming ability
Efficiency: less than 1 second to test one tank.
3. Probe Performance
| Item | SYW-A |
| Purpose | Measure product level, water level and temperature |
| Titles of medium | Gasoline, diesel, kerosene, ethanol , water etc. |
| State of medium | Liquid |
| Explosion-proof grade | ExiaIIBT4 (Intrinsically safe) |
| Pressure range | -0.02Mpa~0.6 Mpa |
| Certificate | PCEC Conformity Certificate of Explosion-proof / Permit of Manufacture Measuring Instruments |
| Temperature | -40℃～70℃ |
| Product Level Accuracy | ±0.5mm |
| Water Level Accuracy | ±0.5mm |
| Temperature Accuracy | ±0.2℃ |
| Height Resolution | 0.023mm |
| Repeatability | ±0.1mm |
| Environmental Temperature Effect | Error<0.2mm |
| Vibration Effect | Error<0.5mm |
| Lowest Product Inactive Zone | 2.5'' floater-180mm |
| Lowest Water Inactive Zone | 2.5'' floater-25mm |
| Measured Variable | Product level, interface level and temperature of 5 sensors and average temperature |
| Probe Length | 600~3500mm |
| Method of Communication | RS-485 |
| Probe Material | 1Cr18Ni9Ti |
| Power Supply | +24～26VDC |
| Protection Class of Probe Canister | IP67 |
| Max Communication Distance | 1200m |
Installation:
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
Products are independent R&D production,and achieved many national invention patents ,Implement the concept of customer needs first. Cost effective products and good service win the customs trust and support. In future ,we will continuously make exploration and innovations,and focus on the product development and the utilization of the technology to improve our quality and offer a compete range of new products for the customers.We are willing to conduct extensive cooperation with companies ,we sincerely hope to become your trustworthy partner!
|
|
