SYW-A Oil Level Transmitter With Float Diesel Fuel Tank Gauge
Controller For Fueling Station
Automatic Tank Gauge (ATG) system consists of SYW Magnetostrictive
Probe and TCM-1 ATGs Smart Console, it is an electronic device,
whose basic function is to monitor the fuel level in the tank. It
can also tell the operator what is going on inside the tank. In
other words, it gives us very important information like fuel
level, volume and temperature, water level and volume, high and low
fuel level warnings etc. There are different plans to satisfy
different customers according to their effective demands.

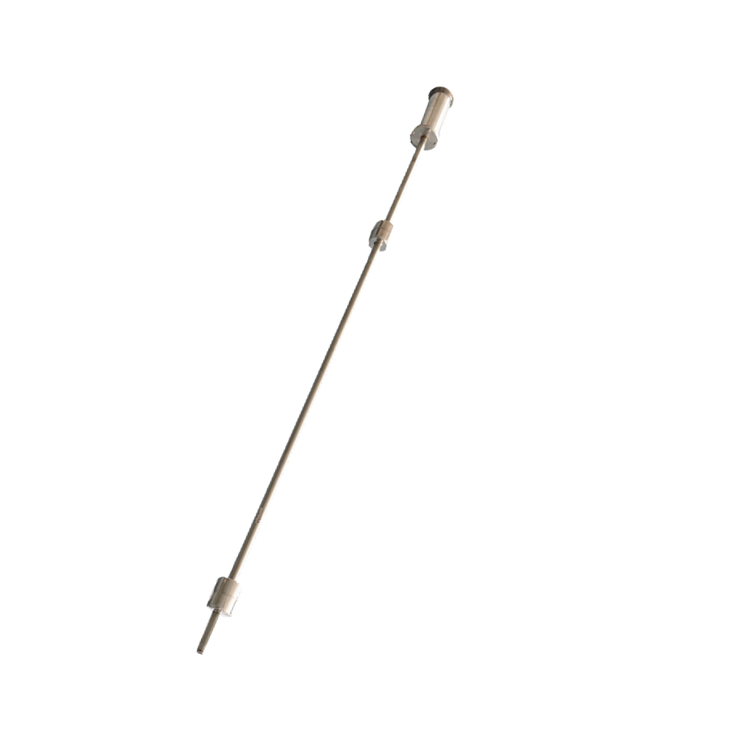

Magnetostrictive level transmitter (SYW-A )
●ATG probe consist of:
Fully enclosed magnetostrictive probe.
Electronic Pod using for data measuring and transforming.
Floater made according to the product.
●Probe Performance
| Item | SYW-A |
| Purpose | To measure product level, water level and temperature |
| Titles of medium | Gasoline, diesel, kerosene, ethanol , water etc. |
| State of medium | Liquid |
| Explosion-proof grade | ExiaIIBT4 (Intrinsically safe) |
| Pressure range | -0.02Mpa~0.6Mpa |
| Certificate | PCEC Conformity Certificate of Explosion-proof |
| Temperature | -40℃～70℃ |
| Product Level Accuracy | ±0.3mm |
| Water Level Accuracy | ±0.3mm |
| Temperature Accuracy | ±0.2℃ |
| Height Resolution | 0.023mm |
| Repeatability | ±0.1mm |
| Temperature Effect | Error<0.2mm |
| Vibration Effect | Error<0.5mm |
| Lowest Product Inactive Zone | 2.5'' floater-180mm |
| Lowest Water Inactive Zone | 2.5'' floater-25mm |
| Measured Variable | Product level, interface level and temperature of 5 sensors and average temperature |
| Measure Range | 600~4000mm |
| Method of Communication | RS-485 |
| Probe Material | 1Cr18Ni9Ti |
| Power Supply | +24～26VDC |
| Protection Class of Probe Canister | IP67 |
| Max Communication Distance | 1200m |
Touch Control Console (TCM-1)
●It can monitor up to 1-12 tanks and monitor the delivery
conditions.
●It can display product level, water level, temperature, volume,
ullage.
●It enjoys a tank tilt compensation function.
●It can display dynamically the change of product level and water
level with graphics in proportion, it features a 7 inch colored
touch-screen console panel, and each interface displays 4 graphics.
●It features an audible and visual alarm function with front panel.
●It comes with two RS-232 serial interface communication ports to
connect with different brand Center Console.
●There is an embedded printer in it to print inventory reports,
delivery reports, leak reports and shift reports.
●It can calculate volume of product by multipoint, which can fully
ensure the accuracy of volume of the product.
●After connected with Center Console though internet, it can
provide information in long-distance for manager to arrange the
inventory.
●It can monitor the oil pump according to the product level, which
can avoid the product spilled and pumpdown..
●It can connect with flow-meter to display delivery information
constantly.
internet check function:
After connect with internet, Users can check petrol station tank
gauge information on mobile phone or PC anywhere anytime.
| Display | English Language, Graph, Colored |
| Monitoring Capability | 8 tanks or 12 tanks |
| Method of Communication | RS-485 |
| Relay | With 2 relay |
| Print Function | User can print all kinds of reports |
| Network Function | Inquiring data in long-distance through internet |
| Explosion-proof Ringer | Avoiding the product spilled |
| Control the Oil Pump | Avoiding the product spilled and pump down |
| Automatic Gauge | Display product level, water level, temperature, volume, ullage .. |
| Interface | With one RS-232 serial interface communication ports |
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
|
|
