Fuel Monitoring Automatic Tank Gauge Stainless Steel Material AC220V

Automatic Tank Gauge (ATG) system consists of Magnetostrictive Probe and Smart Console, it is an electronic device, whose basic function is to monitor the fuel level in the tank. It can also tell the operator what is going on inside the tank. In other words, it gives us very important information like fuel level, volume and temperature, water level and volume, high and low fuel level warnings etc. There are different plans to satisfy different customers according to their effective demands.

Solution:

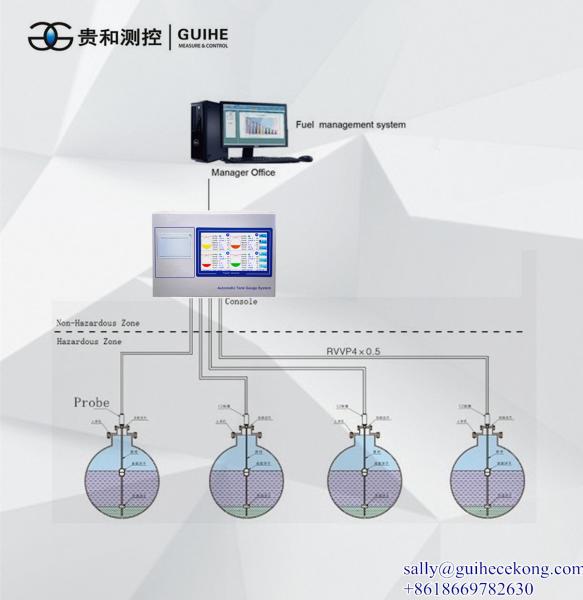

• SYW-A Probe + TCM-1 Control Console

• SYW-A Probe + TCM-1 Control Console+ PCsoftware
• SYW-A Probe + TCM-1 Control Console+ PC software+ Internet Remote Query
• SYW-A Probe + TCM-1 Control Console + Central Control System(other brands)
• SYW-A Probe (Modbus protocol)+ Other brands Controller

Magnetostrictive Probe

● Features:

Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC

Accuracy: level accuracy is ±0.3mm

Stability: strong anti-jamming ability

Efficiency: less than 1 second to test one tank.

● Probe Performance

Product Show:

Touch Control Console

● It can monitor up to 1-12 tanks and monitor the delivery conditions.

● It can display product level, water level, temperature, volume, ullage.

● It enjoys a tank tilt compensation function.

● It can display dynamically the change of product level and water level with graphics in proportion, it features a 7 inch colored touch-screen console panel, and each interface displays 4 graphics.

● It features an audible and visual alarm function with front panel.

● It comes with two RS-232 serial interface communication ports to connect with different brand Center Console.

● There is an embedded printer in it to print inventory reports, delivery reports, leak reports and shift reports.

● It can calculate volume of product by multipoint, which can fully ensure the accuracy of volume of the product.

● After connected with Center Console though internet, it can provide information in long-distance for manager to arrange the inventory.

● It can monitor the oil pump according to the product level, which can avoid the product spilled and pumpdown..

● It can connect with flow-meter to display delivery information constantly.

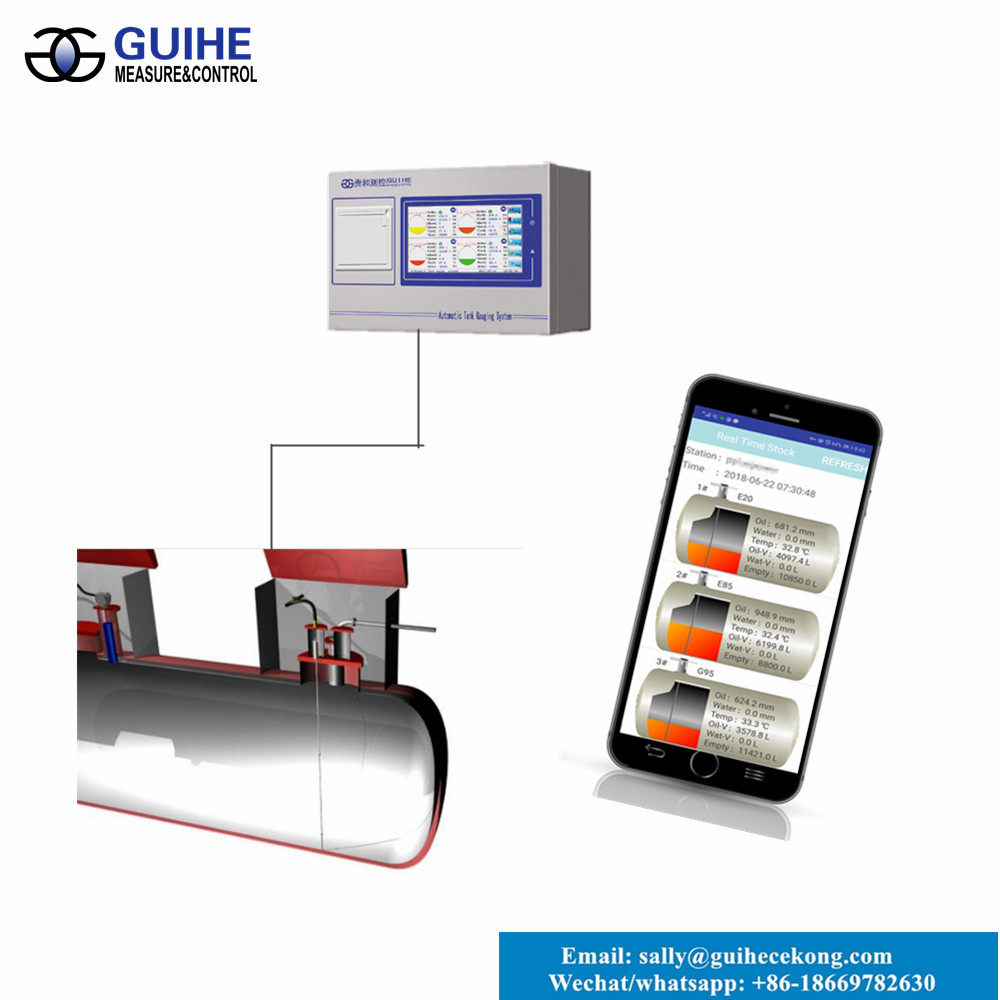

Romete check function:

After connect with internet, Users can check petrol station tank gauge information on mobile phone or PC anywhere anytime.

Preparation Before Installation

The following preparation should be down before the liquid level meter installation.

• Vertical-pipe
• Blind plate
• Wiring RVVP-4*0.75 shied cable from tank farm to control room, galvanized pipe on the outside of the shied cable. The cable from tank farm to control room can not have a connector.
• The part of the galvanized pipe exposed from the wall of manhole length about 100mm, its outer thread (G3/4) length of 25mm, using for connection with explosion-proof box.
