    fuel depot Stainless Steel Material 1 - 20 Meter Measuring Flexible Diesel Tank Level Probe

    Fuel depot Stainless Steel Material 1 - 20 Meter Measuring Flexible Diesel Tank Level Probe


    Tank gauge Discription

    Magnetostrictive Liquid Level Meter (Tank gauging system) for oil deport produced by Guihe consists of Flexible Hose Probe and Touch Control Console.

    • Fuel tank level gauge consist of Magnetostrictive probe (mode:SYW-A, SYW-A1)and Touch screen control console (mode:TCM-1,TCC-3).
    • SYW-A magnetostrictive probe installed in the tank, with magnetostrictive technology,can accurately measure the fuel level ,water level,ullage and multiple temperature.
    • Touch control console installed in the petrol station control room, it can automatically probe data acquisition and processing, real-time display tank storage information, realize the tank leak detection, automatic unloading, record query, control multi-channel submersible pump,oil level alarm, data upload, and other functions


    SYW-A1 Probe +TCM-1or TCC-3 Smart Console


    1. Industrial design, long service life, fast in running.

    2. Information are stored in memory for future inquiry.

    3. With an embedded printer(optional) it can print inventory reports, delivery reports, leak reports and shift reports

    4. It can monitor up to 12 tanks and display dynamically the product level and water level with colored graphics in proportion.

    5. After connected with Central Control System though internet, it can provide information for manager to manage the inventory, delivery and the sale of the product.


    SYW-A1 Flexible Magnetostrictive Probe

    .


    SYW-A1 Flexible Magnetostrictive probe can satify the demand a digital communication interface the offers the liquid level market unsurpassed flexibility to meet most process application condition. The probe provide 3 in 1 measurement for fuel level, water level and temperature measurements


    Probe Performance

    ItemSYW-A1
    PurposeTo measure product level, water level and temperature
    Titles of mediumGasoline, diesel, kerosene, ethanol , water etc.
    State of mediumLiquid
    Explosion-proof gradeExiaIIBT4 (Intrinsically safe)
    Pressure range-0.02Mpa~0.6Mpa
    Temperature-40℃~70℃
    Product Level Accuracy±1mm
    Water Level Accuracy±1mm
    Temperature Accuracy±0.2℃
    Height Resolution0.023mm
    Repeatability±0.1mm
    Temperature EffectError<0.2mm
    Vibration EffectError<0.5mm
    Measured VariableProduct level, water level and temperature of 5 sensors and average temperature
    Probe Length4000-12000mm
    Method of CommunicationRS-485
    Power Supply+24~26VDC
    Communication MethodRS485
    Probe Material316L
    Enclosure RatingsIP68

    TCC-3 Touch Control Console

    ●It can monitor up to 1-16 tanks and monitor the delivery conditions.

    ●It can display product level, water level, temperature, volume, ullage.

    ●It enjoys a tank tilt compensation function.

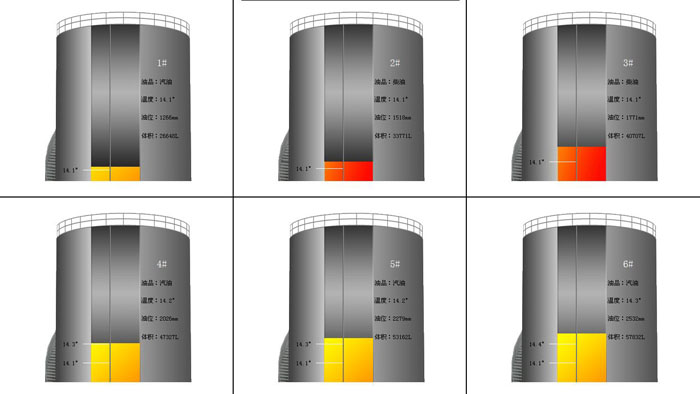

    ●It can display dynamically the change of product level and water level with graphics in proportion, it features a 7 inch colored touch-screen console panel, and each interface displays 4 graphics.

    ●It features an audible and visual alarm function with front panel.

    ●It comes with one RS-232 serial interface communication ports to connect with different brand Center Console.

    ●It enjoys a record function, all information are stored in memory for future queries

    ●It can calculate volume of product by multipoint, which can fully ensure the accuracy of volume of the product.


    TCC Touch Control Console
    Parameters
    Power Supply VoltageAC120~265V 50HZ
    Environmental Temperature-20℃~60℃
    Environmental Humidity20%~85%
    Display Screen7 inch real colorful touch screen
    Processor / MemoryHigh-speed embedded / ---
    Hard Disk / CF---
    Safety BarrierPower safety barrier, communication safety barrier
    Power-off protection---
    Size300mm×360mm×120mm
    Functions
    DisplayEnglish, Graph, Colored
    System LanguageEnglish
    Monitoring Capability1-16tanks
    RelayWith 2 relays
    Method of CommunicationRS-485
    Tank Inventory ReportUsers can inquire inventory information at any moment.
    Auto DeliveryAuto delivery monitoring, and reports are generated after delivery. Users can inquire reports.
    Manual deliveryClick the “start delivery”, it will create delivery report
    Print FunctionUser can print all kinds of reports
    Network FunctionInquiring data in long-distance through internet.
    Outside Explosion-proof RingerAvoiding the product spilled.
    Setup/Inquiry ParameterUsers can setup and inquiry the parameter about the tank, hardware, product type, alarm, date, tank volume table
    Automatic GaugeDisplay product level, water level, temperature, volume, ullage
    AlarmAudible and visual alarm and inquiry function
    Shift ExchangeShift exchange function and create the report.
    InterfaceWith one RS-232 serial interface communication ports,one internet port

    Preparation Before Installation


    The following preparation should be down before the liquid level meter installation.


    Installation:

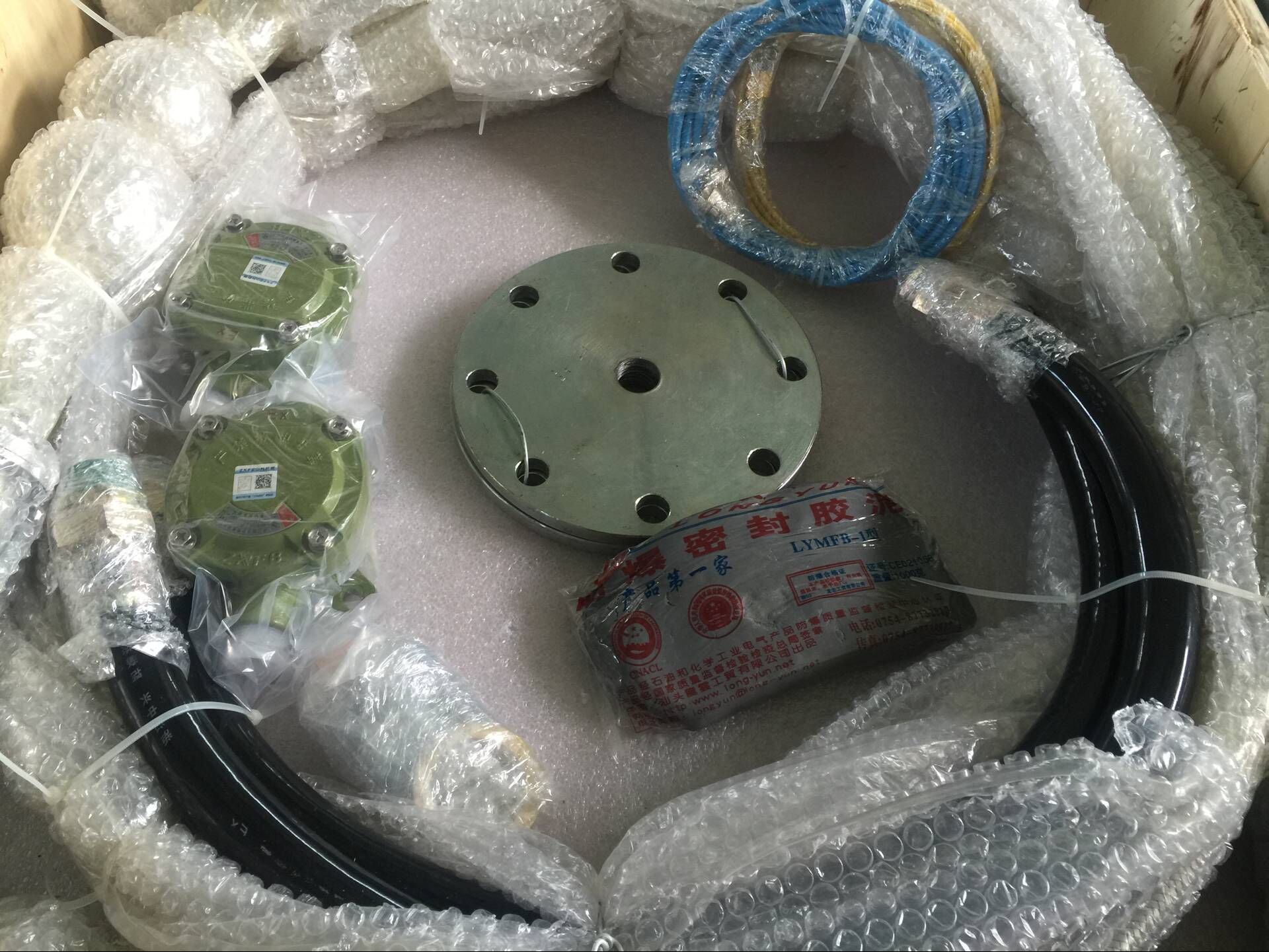

    Packing:
