Guihe auto tank gauge composes of 2 main parts: SYW-A magnetostrictive probe and TCM-1 smart console.
The probe in the oil tank mainly measures the level of petrol and water and temperature of the tank. The console are uesd to operate the settings and calsulate the volume and create the report and so on.
1. SYW-A magnetostrictive probe
●The probe consist of:
Fully enclosed magnetostrictive probe.
Electronic Pod using for data measuring and transforming.
Floater made according to the product.
●Features:
Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC
Accuracy: level accuracy is ±0.3mm
Stability: strong anti-jamming ability
Efficiency: less than 1 second to test one tank.
Item | SYW-A |
Purpose | To measure product level, water level and temperature |
Titles of medium | Gasoline, diesel, kerosene, ethanol , water etc. |
State of medium | Liquid |
Explosion-proof grade | ExiaIIBT4 (Intrinsically safe) |
Pressure range | -0.02Mpa~0.6Mpa |
Certificate | PCEC Conformity Certificate of Explosion-proof |
Temperature | -40℃～70℃ |
Product Level Accuracy | ±0.3mm |
Water Level Accuracy | ±0.3mm |
Temperature Accuracy | ±0.2℃ |
Height Resolution | 0.023mm |
Repeatability | ±0.1mm |
Temperature Effect | Error<0.2mm |
Vibration Effect | Error<0.5mm |
Lowest Product Inactive Zone | 2.5'' floater-180mm |
Lowest Water Inactive Zone | 2.5'' floater-25mm |
Measured Variable | Product level, interface level and temperature of 5 sensors and
average temperature |
Measure Range | 600~4000mm |
Method of Communication | RS-485 |
Probe Material | 1Cr18Ni9Ti |
Power Supply | +24～26VDC |
Protection Class of Probe Canister | IP67 |
Max Communication Distance | 1200m |
2. TCM-1 smart console
| Name | Features | Technical parameters |
| TCM-1 smart console | · The latest ARM processor and Linux system make the console work reliable and stable. · All the industrial electronic components are with high quality, which enable the console to work in the high and low temperature environment. · ATG Console support multi communication way such as MODEM, TCP/IP, GPRS, GSM etc. · ATG console can be easily interfaced to back office management system to manage the whole station’s business. · The console software can be easily upgraded through flash disk. Fast and efficient. · Colorful touch screen display makes the operation easy and comfortable. · The console can control maximum 12 tanks. |
|

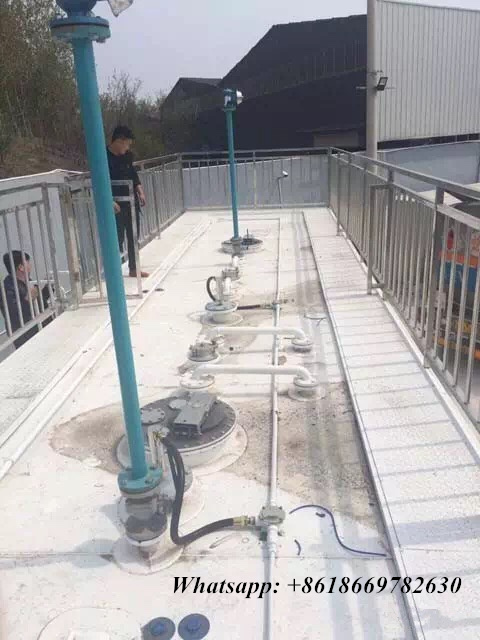

Guidelines before the liquid level meter installation.
In order to ensure the installation successfully, you should make preparations as follows,
Working standard
Far away from the thank farm and other unsafe area.
The Power Ground in control room should be reliable
1:How long will you give me the reply?
we will contact you in 2 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as
soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO, we could send the certification
test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the
best quality and lowest factory price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us
and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
