    Autoamted Diesel Fuel Tank Level Monitor , AC220V Fuel Monitoring Device

    Ask Lasest Price
    Brand Name : Guihe
    Model Number : TCM-1
    Certification : PCEC Explossion proof certification
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000PCS per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Autoamted Diesel Fuel Tank Level Monitor , AC220V Fuel Monitoring Device


    Diesel Fuel Tank Level Mointor Calculate Volume Inventory Report For Automatic Tank Gauge

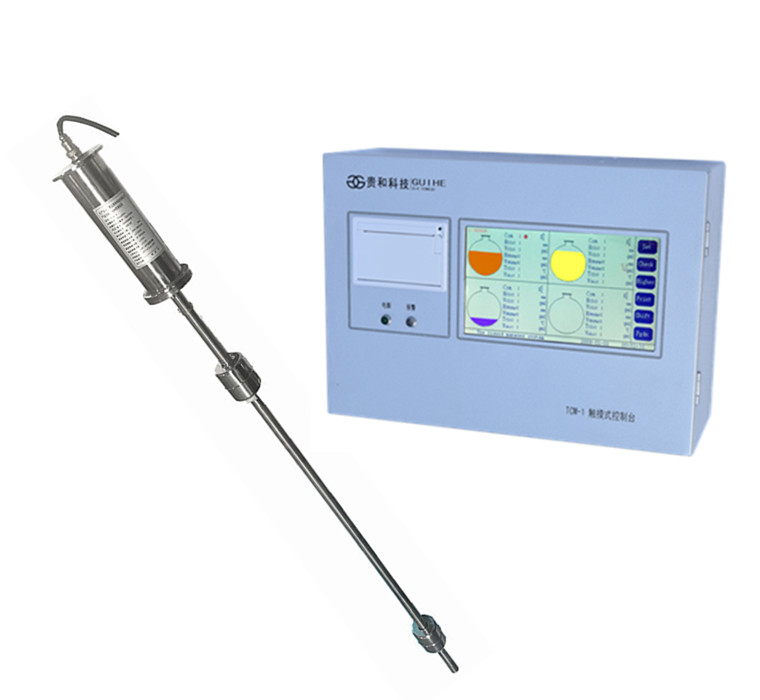

    TCM-1 Tank gauge smart console

    ● Specification

    TCM-1 Touch Control Console
    Power Supply VoltageAC120~265V 50HZ
    Environmental Temperature-20℃~60℃
    Environmental Humidity20%~85%
    Display Screen7 inch real colorful touch screen
    Processor / MemoryHigh-speed embedded / ---
    Printer (Optional)Embedded minitype printer
    Safety BarrierPower safety barrier, communication safety barrier
    Size310x220x105 (mm)
    Functions
    DisplayEnglish, Graph, Colored
    System LanguageEnglish
    Monitoring Capability10 tanks
    RelayWith 2 relays
    Method of CommunicationRS-485
    Tank Inventory ReportUsers can inquire and print inventory information at any moment.
    User-defined product type supportedAvailable
    Auto DeliveryAuto delivery monitoring, and reports are generated after delivery. Users can inquire and print reports.
    Manual deliveryClick the “start delivery”, it will create delivery report
    Product Mass Calculation---
    Print FunctionUser can print all kinds of reports
    Network FunctionInquiring data in long-distance through internet.
    Outside Explosion-proof RingerAvoiding the product spilled.
    System UpdateIt’s convenient to update the software and hardware.
    Control the Oil PumpAvoiding the product spilled and pumpdown
    Setup/Inquiry ParameterUsers can setup and inquiry the parameter about the tank, hardware, product type, alarm, date, tank volume table
    Automatic GaugeDisplay product level, water level, temperature, volume, ullage
    Volume Table EditData input via touch screen, enjoy the import and export function.
    Volume Table CalibrationUse the method of Guihe Volume Table Calibration to calibrate it.
    Static Leak Detection FunctionDuring the idle time of the gas station, user can do the leak detection for the thank.( Detection rate :0.38 L/H)
    Dynamic Leak Detection Function---
    AlarmAudible and visual alarm and inquiry function
    Shift ExchangeShift exchange function and create the report.
    InterfaceWith RS-232 serial interface communication ports


    Gas station liquid level gauge advantages


    ■ The inspection speed is fast, only 1 second

    ■ Product technical indicators are equal to or higher than foreign brands, and the price is much lower than foreign brands, cost-effective

    ■ The probe material is made of seamless stainless steel tube (1Cr18Ni9Ti), which is corrosion-resistant and has a long service life. It is made of seamed steel pipe in foreign countries.

    ■ It is the only product in China that has an embedded printer on the touch console, which is convenient for users to transfer shifts and unloading records management.

    ■ Floating ball is made of special materials, corrosion-resistant and anti-aging. Stainless steel or foaming floats are used in the same industry.

    ■ Touch-based console system is completely self-developed, bare-metal operation, no operating system copyright issues

    ■ Have all the intellectual property rights of the products, clear property rights, have a professional software and hardware R & D team, can customize personalized products or solutions according to user needs

    ■ Establish a professional quality installation and after-sales service team. In order to provide customers with real-time technical support, the 400-685-1920 customer service line was opened, providing uninterrupted technical consultation and the fastest 24-hour service.

    ■ The liquid level controller console adopts an open protocol, which can be directly connected with different brand central control systems to realize unified management of the oil station data.

    ■ Remote query function, which is convenient for management departments to arrange inventory and achieve intensive management

    ■ The console can be connected to the oil discharge flowmeter, and the flowmeter related information is directly displayed on the console.

    ■ TCM-1 touch console can support up to 12 oil tanks, reducing user investment costs


    Function show:


    Main interface:


    Internet Function

    1. Users can check petrol station tank gauge information on Mobile phone.

    2.Users can logon our remote inquiry website, enter their petrol station name and password to check their petrol station tank gauge information.

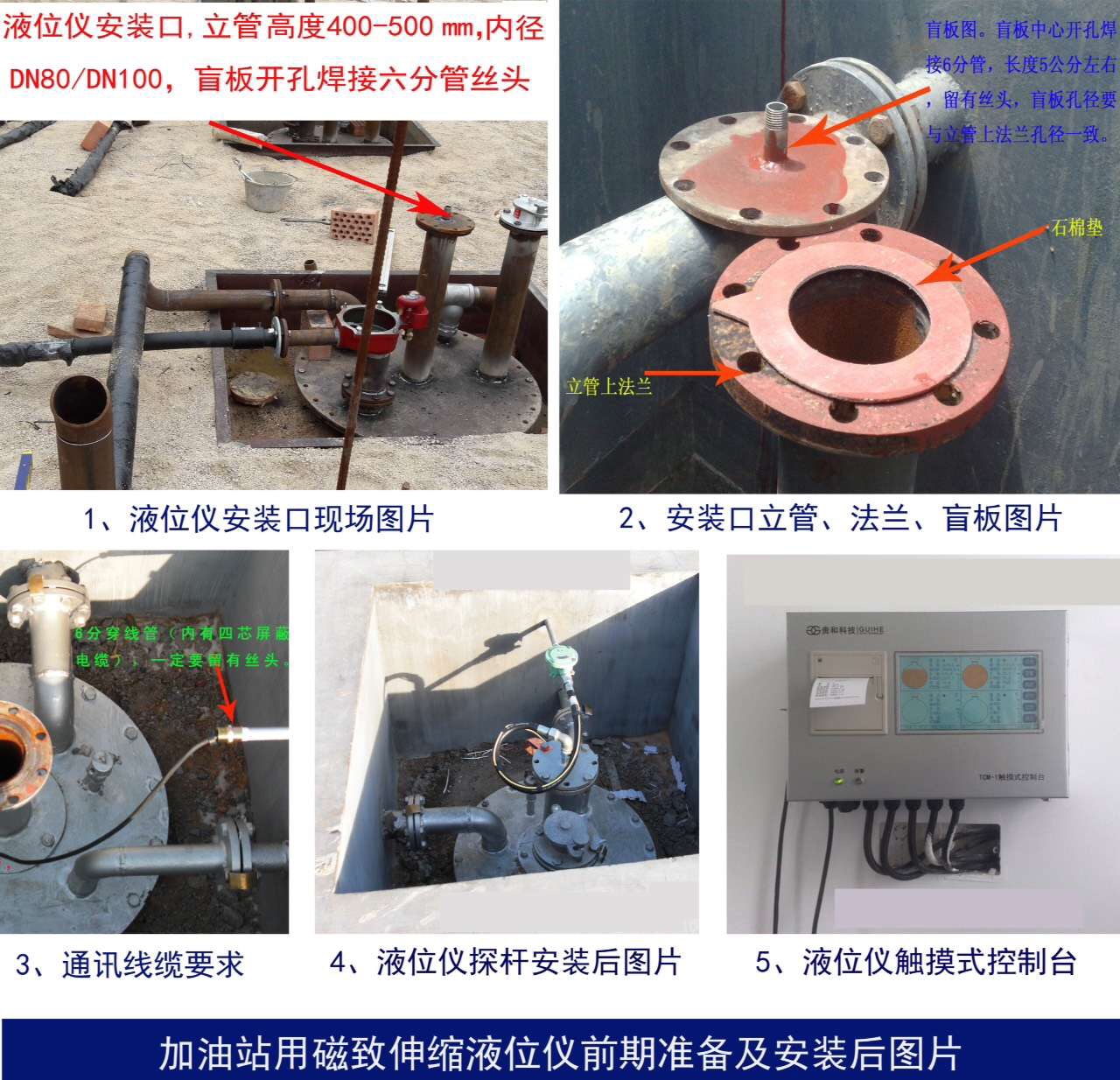

    Installation:

    :
    Packing:
    Our service

    1. Provide necessary conditions for the customers visiting factory.

    2. Good quality with competitive price.

    3. All products have been strictly Quality Checked before shipping.

    4. Free repair within 12 months.

    5. Great after-sale service and offer solution within 24 hours.

    6.OEM is ok.
