| Brand Name : | Guihe |
| Model Number : | TCM-2 |
| Certification : | PCEC Explossion proof certification |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000PCS per month |
| Delivery Time : | 5-7 working days |

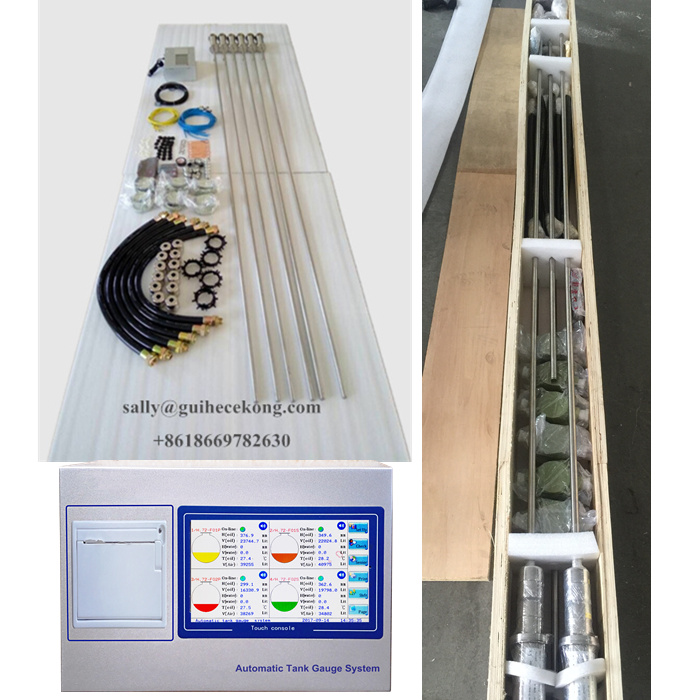

TCM-2 Fuel Tank Level Gauge Smart Controller With Oil And Water High Alarm For Petrol Station
Main Features
1. Real time data transmission.
2. Five-point temperature sensing.
3. Digital signal transmit with anti-interruption ability.
4. Maximum communication distance: 1200m.
5. High precision as 0.5mm and resolution as 0.01mm.
6. Leak Detect function: Standard--- 0.38L/H or 0.76L/H.
7. More reliable, environment friendly, could be used in torrid climate and freezing climate.
8. Non-corrosion 316 stainless steel ensure longer lifetime in most petroleum products.
9. Trouble-free, easy to install and operate.
10. IP67 protection grade.
●Specification
| TCM-1 Touch Control Console | |
| Power Supply Voltage | AC120~265V 50HZ |
| Environmental Temperature | -20℃~60℃ |
| Environmental Humidity | 20%~85% |
| Display Screen | 7 inch real colorful touch screen |
| Processor / Memory | High-speed embedded / --- |
| Printer (Optional) | Embedded minitype printer |
| Safety Barrier | Power safety barrier, communication safety barrier |
| Size | 310x220x105 (mm) |
| Functions | |
| Display | English, Graph, Colored |
| System Language | English |
| Monitoring Capability | 10 tanks |
| Relay | With 2 relays |
| Method of Communication | RS-485 |
| Tank Inventory Report | Users can inquire and print inventory information at any moment. |
| User-defined product type supported | Available |
| Auto Delivery | Auto delivery monitoring, and reports are generated after delivery. Users can inquire and print reports. |
| Manual delivery | Click the “start delivery”, it will create delivery report |
| Product Mass Calculation | --- |
| Print Function | User can print all kinds of reports |
| Network Function | Inquiring data in long-distance through internet. |
| Outside Explosion-proof Ringer | Avoiding the product spilled. |
| System Update | It’s convenient to update the software and hardware. |
| Control the Oil Pump | Avoiding the product spilled and pumpdown |
| Setup/Inquiry Parameter | Users can setup and inquiry the parameter about the tank, hardware, product type, alarm, date, tank volume table |
| Automatic Gauge | Display product level, water level, temperature, volume, ullage |
| Volume Table Edit | Data input via touch screen, enjoy the import and export function. |
| Volume Table Calibration | Use the method of Guihe Volume Table Calibration to calibrate it. |
| Static Leak Detection Function | During the idle time of the gas station, user can do the leak detection for the thank.( Detection rate :0.38 L/H) |
| Dynamic Leak Detection Function | --- |
| Alarm | Audible and visual alarm and inquiry function |
| Shift Exchange | Shift exchange function and create the report. |
| Interface | With RS-232 serial interface communication ports |
Internet Function
1. Users can check petrol station tank gauge information on Mobile phone.
2.Users can logon our remote inquiry website, enter their petrol station name and password to check their petrol station tank gauge information.
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
|
|
