Automatic Tank Gauging (ATG) system consists of SYW-A Magnetostrictive Probe and TCM-1 ATGs Smart Console. SYW Magnetostrictive probe adopts advanced magnetostrictive technology and digital electronic technology design, the main processor (CPU) uses high frequency arithmetic processor, circuit design uses highprecision instrument to amplify circuit, real digital communications, can accurately measure the oil level, water level,density and multi-temperature of the tank. It has high precision of measurement parameters, complete data, strong anti-interference ability, strong environmental adaptability, reliable data security, advanced algorithm and so on.

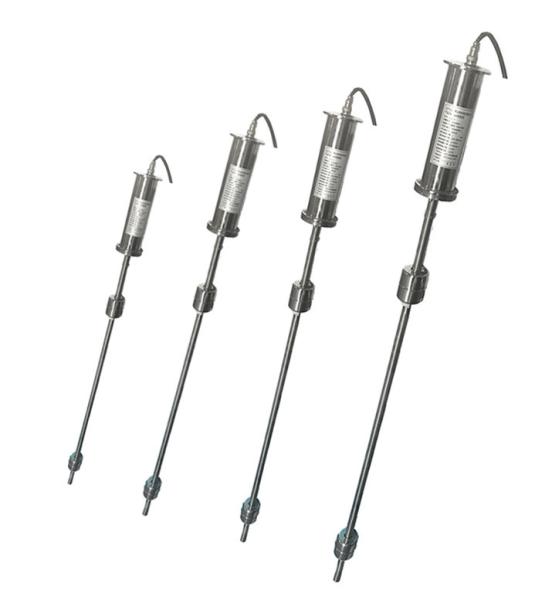

Guihe SYW series tank level probe uses magnetostrictive principle, intrinsically safe explosion-proof design, can accurately measure the fuel level, water level and temperature in fuel tank.
No. | Item | Specification |
1 | Usage | To measure product level, water level and temperature |
2 | Measuring Medium | Gasoline, diesel, kerosene, ethanol , water etc. |
3 | Explosion-proof | ExiaIIBT4 (Intrinsically safe) |
4 | Temperature | -40℃~70℃ |
5 | Fuel Level Accuracy | ±0.3mm |
6 | Temperature Accuracy | ±0.2℃ |
7 | Height Resolution | 0.023mm |
8 | Lowest Product Inactive Zone | 2.5'' floater-180mm |
9 | Lowest Water Inactive | 2.5'' floater-25mm |
10 | Measured Variable | Product level, interface level and temperature of 5 sensors and
average temperature |
11 | Measuring Range | 600~4000mm |
12 | Communication | RS-485 |
13 | Power Supply | +24~26VDC |
14 | Protection Class of Probe Canister | IP67 |
15 | Probe Material | 1Cr18Ni9Ti |
16 | Max Communication Distance | 1200m |
●Flexible probe consist of:
Fully enclosed magnetostrictive probe.
Electronic Pod using for data measuring and
transforming.
Floater made according to the product.
●Features:
Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC
Accuracy: level accuracy is ±1mm
Stability: strong anti-jamming ability
●Probe Performance
| Item | SYW-A1 |
| Purpose | To measure product level, water level and temperature |
| Titles of medium | Gasoline, diesel, kerosene, ethanol , water etc. |
| State of medium | Liquid |
| Explosion-proof grade | ExiaIIBT4 (Intrinsically safe) |
| Pressure range | -0.02Mpa~0.6Mpa |
| Temperature | -40℃～70℃ |
| Product Level Accuracy | ±1mm |
| Water Level Accuracy | ±1mm |
| Temperature Accuracy | ±0.2℃ |
| Height Resolution | 0.023mm |
| Repeatability | ±0.1mm |
| Temperature Effect | Error<0.2mm |
| Vibration Effect | Error<0.5mm |
| Lowest Product Inactive Zone | 2.5'' floater-180mm |
| Lowest Water Inactive Zone | 2.5'' floater-25mm |
| Measured Variable | Product level, interface level and temperature of 5 sensors and average temperature |
| Probe Length | 4000-15000mm |
| Method of Communication | RS-485 |
| Power Supply | +24～26VDC |
