Petrol station Automatic Tank Gauge manufacturer. sally@guihecekong.com +8618669782630
7 Years
| Ask Lasest Price | |
| Brand Name : | Guihe |
| Model Number : | SYW |
| Certification : | PCEC Explossion proof certification |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000PCS per month |
| Delivery Time : | 7-10 working days |

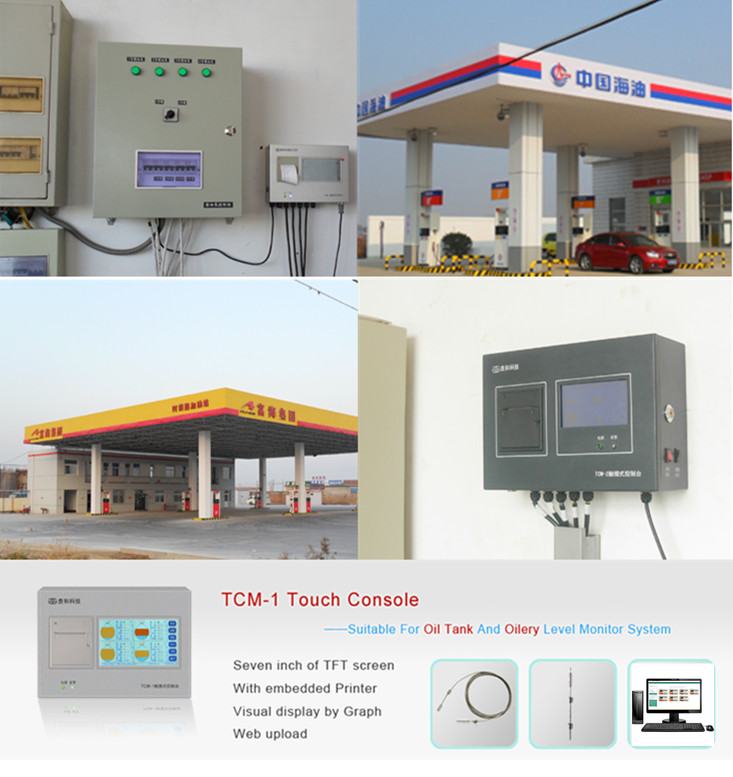

Guihe level gauge consists of a series of touch consoles and SYW-A probe. The probe uses magnetostrictive technology to accurately measure the oil level, water level and multi-point temperature in the tank. The touch console series can automatically collect and process probe data, display tank information in real time, realize dynamic and static leak detection, automatic oil discharge, record inquiry, oil level alarm, data upload and other functions to provide accurate gas station. Oil products are imported, sold and stored.
●Flexible magnetostrictive probe consist of:
Fully enclosed magnetostrictive probe.
Electronic Pod using for data measuring and
transforming.
Floater made according to the product.
●Features:
Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC
Accuracy: level accuracy is ±1mm
Stability: strong anti-jamming ability
●Probe Performance
| Item | SYW-A1 ATG flexible level sensor probe |
| Purpose | To measure product level, water level and temperature |
| Titles of medium | Gasoline, diesel, kerosene, ethanol , water etc. |
| State of medium | Liquid |
| Explosion-proof grade | ExiaIIBT4 (Intrinsically safe) |
| Pressure range | -0.02Mpa~0.6Mpa |
| Temperature | -40℃～70℃ |
| Product Level Accuracy | ±1mm |
| Water Level Accuracy | ±1mm |
| Temperature Accuracy | ±0.2℃ |
| Height Resolution | 0.023mm |
| Repeatability | ±0.1mm |
| Temperature Effect | Error<0.2mm |
| Vibration Effect | Error<0.5mm |
| Lowest Product Inactive Zone | 2.5'' floater-180mm |
| Lowest Water Inactive Zone | 2.5'' floater-25mm |
| Measured Variable | Product level, interface level and temperature of 5 sensors and average temperature |
| Probe Length | 4000-15000mm |
| Method of Communication | RS-485 |
| Power Supply | +24～26VDC |
Internet function:
1. Provide necessary conditions for the customers visiting factory.
2. ATGs Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
|
|
