| Brand Name : | Guihe |
| Model Number : | SYW |
| Certification : | PCEC Explossion proof certification |
| Price : | USD99-1000/sets |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000PCS per month |
| Delivery Time : | within 7 working days |
Automatic Tank Gauge (ATG) system consists of Magnetostrictive Probe and Smart Console, it is an electronic device, whose basic function is to monitor the fuel level in the tank. It can also tell the operator what is going on inside the tank. In other words, it gives us very important information like fuel level, volume and temperature, water level and volume, high and low fuel level warnings etc. There are different plans to satisfy different customers according to their effective demands.
Solution:
1. SYW-A Probe + TCM-1 Control Console
2. SYW-A Probe + TCM-1 Control Console+ PCsoftware
3. SYW-A Probe + TCM-1 Control Console+ PC software+ Internet Remote Query
4. SYW-A Probe + TCM-1 Control Console + Central Control System(other brands)
5. SYW-A Probe (Modbus protocol)+ Other brands Controller

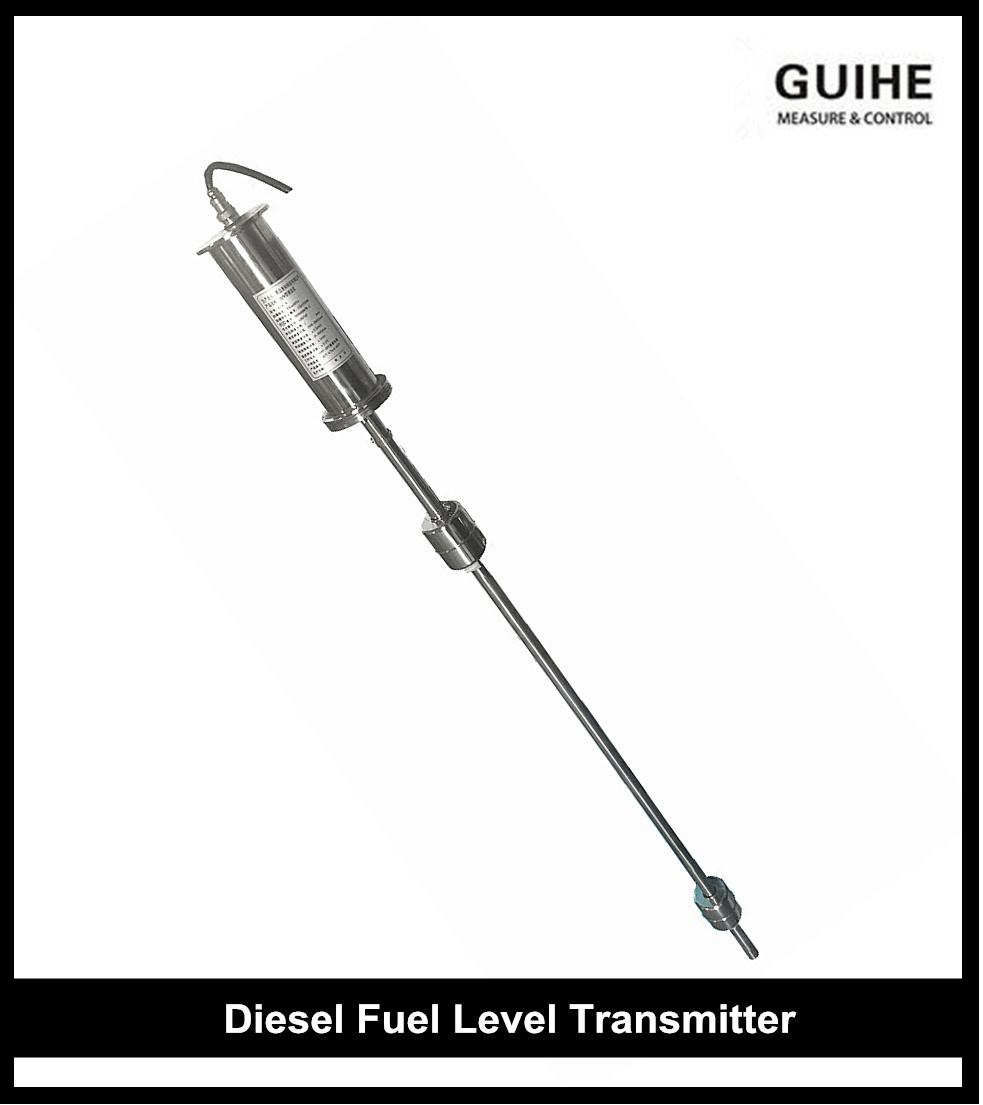

1. Magnetostrictive Probe (SYW-A )
Guihe SWY series tank level probe uses magnetostrictive principle, intrinsically safe explosion-proof design, can accurately measure the product level, water level and temperature in fuel tank.
No. | Item | Specification |
1 | Usage | To measure product level, water level and temperature |
2 | Measuring Medium | Gasoline, diesel, kerosene, ethanol , water etc. |
3 | Explosion-proof | ExiaIIBT4 (Intrinsically safe) |
4 | Temperature | -40℃~70℃ |
5 | Fuel Level Accuracy | ±0.3mm |
6 | Temperature Accuracy | ±0.2℃ |
7 | Height Resolution | 0.023mm |
8 | Lowest Product Inactive Zone | 2.5'' floater-180mm |
9 | Lowest Water Inactive | 2.5'' floater-25mm |
10 | Measured Variable | Product level, interface level and temperature of 5 sensors and
average temperature |
11 | Measuring Range | 600~4000mm |
12 | Communication | RS-485 |
13 | Power Supply | +24~26VDC |
14 | Protection Class of Probe Canister | IP67 |
15 | Probe Material | 1Cr18Ni9Ti |
16 | Max Communication Distance | 1200m |
2. Touch Control Console (TCM-1)
TCM-1 console monitor up to 1-12 tanks and monitor the delivery conditions, display product level, water level, temperature, volume, ullage.It enjoys a tank tilt compensation function. Can display dynamically the change of product level and water level with graphics in proportion, it features a 7 inch colored touch-screen console panel, and each interface displays 4 graphics.It features an audible and visual alarm function with front panel.Comes with two RS-232 serial interface communication ports to connect with different brand Center Console. It enjoys a record function, all information are stored in memory for future queries. There is an embedded printer in it to print inventory reports, delivery reports, leak reports and shift reports.
1. Provide necessary conditions for the customers visiting factory.
2. ATGs Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
|
|
