Petrol station Automatic Tank Gauge manufacturer. sally@guihecekong.com +8618669782630
7 Years
| Ask Lasest Price | |
| Brand Name : | Guihe |
| Model Number : | SYW |
| Certification : | PCEC Explossion proof certification |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000SETS per month |
| Delivery Time : | 5-7 working days |
SYW-A Probe +TCM-1 Touch Control Console + Internet

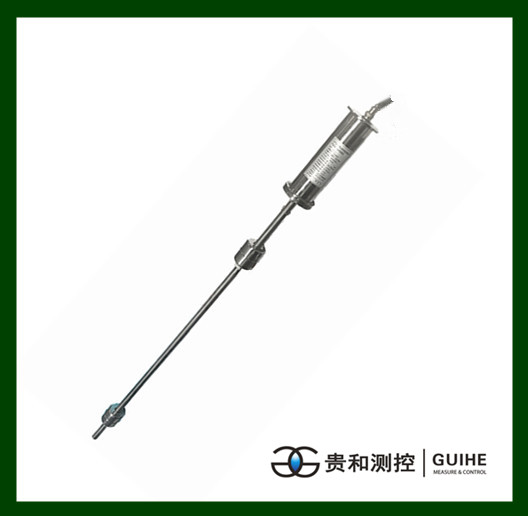

Magnetostrictive Probe (SYW-A )
SYW Magnetostrictive probe adopts advanced magnetostrictive technology and digital electronic technology design, the main processor (CPU) uses high frequency arithmetic processor, circuit design uses highprecision instrument to amplify circuit, real digital communications, can accurately measure the oil level, water level,density and multi-temperature of the tank. It has high precision of measurement parameters, complete data, strong anti-interference ability, strong environmental adaptability, reliable data security, advanced algorithm and so on.
TCM-1 tank gauge console
Tank gauge console is the tank monitor, one key part of the complete automatic tank gauging system. With the tank monitor, you can watch the detail information of underground storage tanks or aboveground storage tanks, like product level, water level, temperature, (fuel density) etc. It is also the communication display platform between ATGs and users. Configurations like alarm value, tank information, etc, also can be user-defined.
Guihe tank gauge console have open communication protocol to fuel management system.
TCM-1 tank gauge console is an enhanced console in Guihe console family. It offers a multi-function operation platform on colorful touch display. High-accuracy and strong data process ability, greatly improve the management efficient and save costs! The reliable performance have highly reputations from thousands station owners.
Remote monitoring function
After connect with internet, Users can check petrol station tank gauge information on mobile phone or PC anywhere anytime.
Specification of tank gauge console
| Power | AC220V, 0.2A, 50/60HZ |
| Working temperature | -20 to 70 ℃ |
| Install location | Petrol station office |
| Display resolution | 800*600 |
| Display size | 7’’ full color LCD |
| Ports | RS232, RJ45 |
| Monitor tanks | 1-12 |
| Explosion proof grade | [Ex ia Ga] II A |
| Sound-light alarm | Yes |
| Tank table | Yes, simulate/input/ upload |
| Printer | Yes, external/built-in |
| Reports | Yes, up to 1 year |
Specification of magnetostrictive probe
| SPECIFICATIONS FOR SYW-A TANK GAUGE PROBE | |
| Power supply | +24~26VDC |
| Precision | ±0.3mm |
| Repeatability | ±0.1mm |
| Resolution of product level | 0.023mm |
| Resolution of water level | 0.3mm |
| Operating temperature range | -40℃~70℃ |
| Points of temperature measured | 5 |
| Maximum communication distance | 1200m |
| Communication mode | RS485 |
| Mark of explosion proof | ExiaⅡAT4 Ga |
| Protection grade | IP67 |
| Measure range | 600-40000mm |
| Principle of measurement | Magnetostrictive measurement techonlogy |
Installation:
Q: Are you trading company or manufacturer?
A: We are original manufacturer.
Q. How to choose suitable probe length for tanks?
A: Note: The probe length usually we called is only probe rod length, not include probe head.
You should know the height of tank, manhole (if have) and riser pipe(if have).
Final probe length shall be determined according to the actual tank condition.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q. What is your terms of packing?
A: Generally, we pack the tank gauge in wooden box, or pack according to customers special request.
Q: How long is your delivery time?
A: Generally, it will take 5-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
Products are independent R&D production,and achieved many national invention patents ,Implement the concept of customer needs first. Cost effective products and good service win the customs trust and support. In future ,we will continuously make exploration and innovations,and focus on the product development and the utilization of the technology to improve our quality and offer a compete range of new products for the customers.We are willing to conduct extensive cooperation with companies ,we sincerely hope to become your trustworthy partner!
|
|
