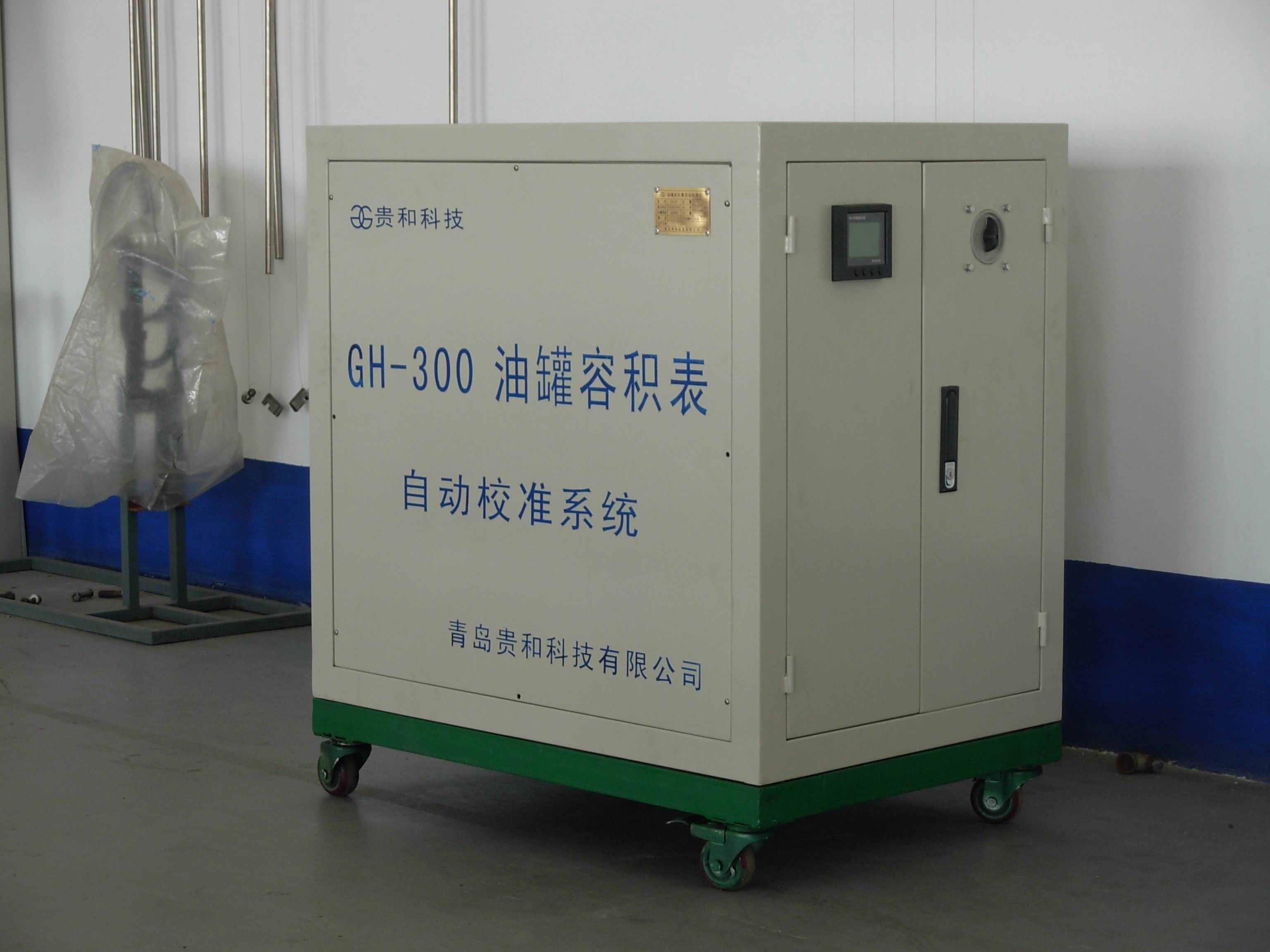

Guihe 3D Tank capatity calibration equipment , automatic level sensor gauge for ga station
The system consists of the sliding vane pump, metering pump, calibration intellectual controller, laptop, printer, system software, pipeline for transfer oil, communication wire and other accessories.
| GH-300Tank Capability Calibration System. | ||
| 1. Measure Principle:Special volume measurement technology and magnetostrictive measurement techniques | ||
| 2. Medium Name:gasoline, diesel, kerosene, light oil and so on | ||
| 3. Medium status:liquid | ||
| 4. Anti-explosion classification:Exde[ia]iaIIBT4 | ||
| 5. Pressure range:-0.02Mpa~0.6 Mpa | ||
| 6. Authentication Item:PCEC Anti-explosion quality certificate / Manufacturing measuring instruments license | ||
| 7.Temperature range:-25℃~60℃ | ||
8. accuracy | Capacity accuracy | ≤±3‰ |
| Liquid level accuracy | ±0.2mm | |
| Temperature accuracy | ±0.2℃ | |
| High resolution | 0.01mm | |
| Repeatability Accuracy | ±0.1mm | |
| Temperature effect (-25℃-70℃) | Measuring error<0.2mm | |
| Mechanical shocking effect | Measuring error<0.5mm | |
| Bottom oil level dead zone | 2.5″floater—120mm | |
| Meter flow oil level | Intellectual reveal | |
| Tank capacity table, oil level revise | yes | |
| 9, Measure method | Site measurement, data upload | |
| 10, tank capacity range | 10~300m3 | |
| 11, communication method: RS-485 | ||
| 13, power supply method:AC380V AC220V 50HZ | ||
| 14, Degrees of protection provided by enclosures:IP67 | ||
| 15, Standard Power for the anti-explosion motor:2.2KW | ||
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
|
|
