| Brand Name : | Guihe |
| Model Number : | SYW |
| Certification : | PCEC Explossion proof certification |
| Price : | negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000PCS per month |
| Delivery Time : | 5-7 working days |
Guihe SYW series magnetostrictive probe take advantage of Wiedemann effect, Villari effect and Ultrasonic effect of intelligent material, by measuring time value difference which can be easily measured with high-precision, to convert to displacement difference, can accurately measure the product level, water level, and temperature for individual tanks.
1. Magnetostrictive level sonsor (SYW-A )
● The probe consist of:
Fully enclosed magnetostrictive probe.
Electronic Pod using for data measuring and transforming.
Floater made according to the product.
● Features:
● Probe Performance
| SPECIFICATIONS FOR SYW-A TANK GAUGE PROBE | |
| Power supply | +24~26VDC |
| Precision | ±0.3mm |
| Repeatability | ±0.1mm |
| Resolution of product level | 0.023mm |
| Resolution of water level | 0.3mm |
| Operating temperature range | -40℃~70℃ |
| Points of temperature measured | 5 |
| Maximum communication distance | 1200m |
| Communication mode | RS485 |
| Mark of explosion proof | ExiaⅡAT4 Ga |
| Protection grade | IP67 |
| Measure range | 600-40000mm |
| Principle of measurement | Magnetostrictive measurement techonlogy |
• Can add density floater If need measure density.(Density measure accuracy:±0.5%)
2. ATGs smart console TCM-1
The main functions about TCM-1 as following:
Authority Management: It’s only need a password to setup the Magnetostrictive Probe parameter, others free operation.
Parameter Setting: Customers can setup parameters about tank, time and tank volume table.
Auto-monitoring: Monitoring up 1~8 (max 12) tanks, display all the tank information of real time.

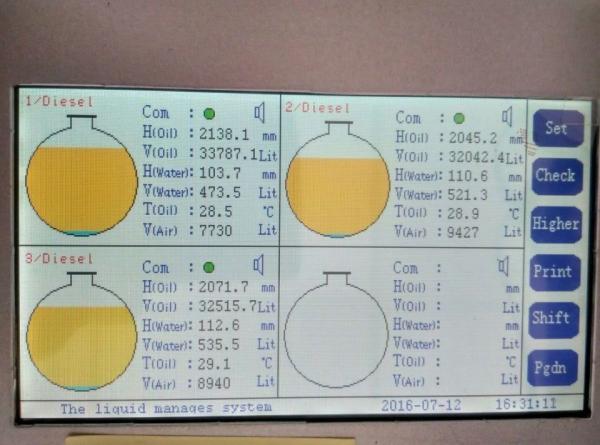

Automatic Gauge: Display fuel level, water level, temperature, inventory and ullage, monitor the fuel delivery condition of real time. Display dynamically the change of fuel and water level with graphic and scale.
Inventory Report: Users can inquire and print the inventory at any moment.
Manual Delivery: Set up fuel delivery parameter, an automatic generating delivery report would be printed after delivery.
Tank Volume Table Edition: Users can input the tank volume table from computer, or input it word by word through touch screen. Tank with the same volume can be copied in the system, need not input one by one.
Static Leak Detection:During the idle time of the gas station, operator can do the leak detection ( 0.38 L/h ) for the tank ,also can print the delivery report.
Alarm: High fuel level alarm, low fuel level alarm, high water level alarm, fuel temperature upper limit alarm, fuel temperature lower limit alarm. With audible and visual alarm signal, audible alarm can be removed. It can connect with an outside explosion-proof ringer to avoid the fuel spilled.
Parameter Inquiry: Users can inquire the tank parameter, time parameter, and tank volume parameter.
Shift Exchange: Click the “Shift” button to accomplish shift exchange.
Print: All the report can be printed with an internal printer.
Communication Interface: Reserve two RS-232 port; achieve fuel buy, sale and stock data upload.
Intelligent control of oil pump: Control oil pump though use of relay avoiding that the oil spilled or pumpdown.
It enjoys tank volume table calibration function.
Installation:
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
|
|
