Petrol Station Digital Fuel Level Gauge With Sound Light Alarm AC220V
1. ATG Composition:

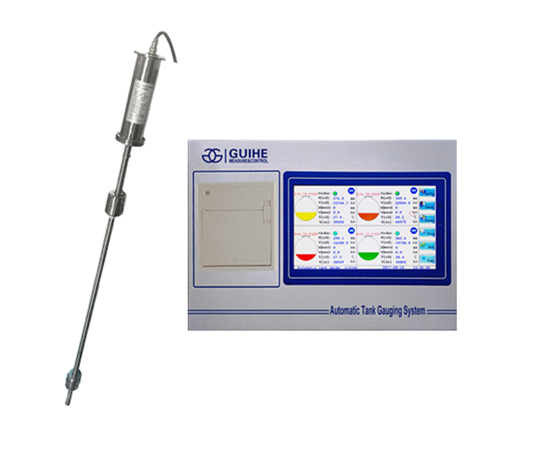

Guihe magnetostrictive liquid level gauge is divided into two parts: probe and touch console.
The probe is installed in the tank area. One tank need one probe. The magnetostrictive technology can accurately measure the oil level, water level and multi-point temperature in the tank. The touch console is installed in the control room and can be automatically collected. And processing probe data, real-time display of tank information, realizing static leak detection, automatic oil unloading, record inquiry, oil level alarm, data uploading and other functions, combined with other information of the petrol station, providing accurate oil products for gas stations , sales, deposit management.
One gas stationi use one console; the tank area is connected to the control room by a communication cable, and the explosion-proof level of the liquid level gauge is intrinsically safe.
2. Specification
Specification of tank gauge console
| Power | AC220V, 50/60HZ |
| Working temperature | -20 to 70 ℃ |
| Install location | Petrol station office |
| Display resolution | 800*600 |
| Display size | 7’’ full color LCD |
| Ports | RS232, RJ45 |
| Monitor tanks | 1-12 |
| Explosion proof grade | [Ex ia Ga] II A |
| Sound-light alarm | Yes |
| Tank table | Yes, simulate/input/ upload |
| Printer | Yes, external/built-in |
| Reports | Yes, up to 1 year |
Specification of magnetostrictive probe
| SPECIFICATIONS FOR SYW-A TANK GAUGE PROBE | |
| Power supply | +24~26VDC |
| Precision | ±0.3mm |
| Repeatability | ±0.1mm |
| Resolution of product level | 0.023mm |
| Resolution of water level | 0.3mm |
| Operating temperature range | -40℃~70℃ |
| Points of temperature measured | 5 |
| Maximum communication distance | 1200m |
| Communication mode | RS485 |
| Mark of explosion proof | ExiaⅡAT4 Ga |
| Protection grade | IP67 |
| Measure range | 600-40000mm |
| Principle of measurement | Magnetostrictive measurement techonlogy |
After connect with internet, Users can check petrol station tank
gauge information on mobile phone or PC anywhere anytime.
The following preparation should be down before the liquid level
meter installation.
Q: Are you trading company or manufacturer?
A: We are original manufacturer.
Q. How to choose suitable probe length for tanks?
A: Note: The probe length usually we called is only probe rod
length, not include probe head.
You should know the height of tank, manhole (if have) and riser
pipe(if have).
Final probe length shall be determined according to the actual tank
condition.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q. What is your terms of packing?
A: Generally, we pack the tank gauge in wooden box, or pack
according to customers special request.
Q: How long is your delivery time?
A: Generally, it will take 5-7 days after receiving your advance
payment. The specific delivery time depends on the items and the
quantity of your order.
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
|
|
