    TLG SYW Series 12 Tanks Monitoring 24V Probe Automatic Fuel Tank Level Gauge

    Ask Lasest Price
    Brand Name : Guihe
    Model Number : SYW
    Certification : PCEC Explosion proof certification
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000SETS per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    TLG SYW Series 12 Tanks Monitoring 24V Probe Automatic Fuel Tank Level Gauge


    Guihe automatic Fuel tank level gauge with Magnetostrictive Probe and Smart Console for gas station!


    Product Description

    Application


    ♦ Liquid level measurement of petroleum, chemical, pharmaceuticals, food, beverage and other industries.

    ♦ Liquid measurement and level detection of gas station.

    ♦ Measurement and detection of automatic refueling and selling system.

    ♦ Sewage treatment


    Applied liquid products
    Gasoline
    Diesel
    Kerosene
    Ethanol Gasoline
    Bio Diesel
    Water
    Other approved light oil products

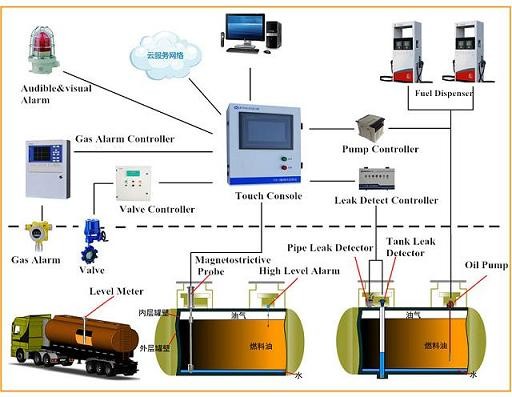

    GUIHE Automatic Tank Gauge system consists of Magnetostrictive Probe and Smart Console, it is an electronic device, whose basic function is to monitor the fuel level in the tank. It can also tell the operator what is going on inside the tank. In other words, it gives us very important information like fuel level, volume and temperature, water level and volume, high and low fuel level warnings etc. There are different plans to satisfy different customers according to their effective demands.


    Feature

    SYW-A Magnetostrictive Probe

    Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC

    Accuracy: level accuracy is ±0.3mm

    Stability: strong anti-jamming ability

    Efficiency: less than 1 second to test one tank.

    TCM-1 Touch Control Console

    ♦ It can monitor up to 12 tanks and monitor the delivery conditions, it also enjoys a static leak test function.

    ♦ It can display product level, water level, temperature, volume, ullage.

    ♦ It enjoys a tank tilt compensation function.

    ♦ It can display dynamically the change of product level and water level with graphics in proportion, it features a 7 inch colored touch-screen console panel, and each interface displays 4 graphics.

    ♦ It features an audible and visual alarm function with front panel.

    ♦ It comes with two RS-232 serial interface communication ports to connect with different brand center console.

    ♦ It enjoys a record function, all information are stored in memory for future queries

    ♦ There is an embedded printer in it to print inventory reports, delivery reports, leak reports and shift reports.

    ♦ It can calculate volume of product by multipoint, which can fully ensure the accuracy of volume of the product.

    ♦ After connected with Center Console though internet, it can provide information in long-distance for manager to arrange the inventory.

    ♦ It can monitor the oil pump according to the product level, which can avoid the product spilled and pumpdown..

    ♦ It can connect with flow-meter to display delivery information constantly.



    Specification


    Magnetostrictive Probe
    PurposeTo measure product level, water level and temperature
    Titles of mediumGasoline, diesel, kerosene, ethanol , water etc.
    State of mediumLiquid
    Explosion-proof gradeExiaIIBT4 (Intrinsically safe)
    Pressure range-0.02Mpa~0.6Mpa
    CertificatePCEC Conformity Certificate of Explosion-proof
    Temperature-40℃~70℃
    Product Level Accuracy±0.3mm
    Water Level Accuracy±0.3mm
    Temperature Accuracy±0.2℃
    Height Resolution0.023mm
    Repeatability±0.1mm
    Temperature EffectError<0.2mm
    Vibration EffectError<0.5mm
    Lowest Product Inactive Zone2.5'' floater-180mm
    Lowest Water Inactive Zone2.5'' floater-25mm
    Measured VariableProduct level, interface level and temperature of 5 sensors and average temperature
    Measure Range600~4000mm
    Method of CommunicationRS-485
    Probe Material1Cr18Ni9Ti
    Power Supply+24~26VDC
    Protection Class of Probe CanisterIP67
    Max Communication Distance1200m

    What solution you can get?


    1. Probe + Control Console

    2. Probe + Control Console+ PCsoftware

    3. Probe + Control Console+ PC software+ Internet Remote Query

    4. Probe + Control Console + Central Control System(other brands)

    5. Probe (Modbus protocol)+ Other brands Controller

    TLG SYW Series 12 Tanks Monitoring 24V Probe Automatic Fuel Tank Level Gauge
    ATGs Package
    FAQ

    1:How long will you give me the reply?

    we will contact you in 2 hours as soon as we can.
    2:Could I get samples?
    Yes,we have materials in stock to help you to get the samples as soon as we can.
    3:How about the quality of the magnets?
    We have the certification of ISO, we could send the certification test of our company to you.
    4:How is the price?
    As we believe the quality is the most important,we will provide the best quality and lowest factory price.
    5:Could you provide me the shortest lead time?
    We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
    6:Could I visit your factory?
    Of course,if you need we will help you to visit our factory.


    Our service

    1. Provide necessary conditions for the customers visiting factory.

    2. Good quality with competitive price.

    3. All products have been strictly Quality Checked before shipping.

    4. Free repair within 12 months.

    5. Great after-sale service and offer solution within 24 hours.

    6.OEM is ok.


    Company Information

    Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
