    DC12 - 24V Power 1 - 3 Meter Measuring Range Fuel Tanker Truck Tank Level Gauge

    Ask Lasest Price
    Brand Name : Guihe
    Model Number : GH-CZ
    Certification : PCEC Explossion proof certification
    Price : USD1000-9000/SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000SETS per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    DC12 - 24V Power 1 - 3 Meter Measuring Range Fuel Tanker Truck Tank Level Gauge

    Fuel Tanker Truck Tank Level Gauge DC12 - 24V Power 1 - 3 Meter Measuring Range


    Tank truck Liquid Level Meter


    Oil Tanker Liquid Level Meter consist of magnetostrictive ATG probe (with stainless steel sleeve) and explosion- proof liquid level meter display and other install attachment .From the top of tank car manhole finished the probe installation , and the battery power can supply the power directly . Fit the explosion-proof liquid level meter display and vehicle-mounted tanker together, the liquid level meter data will reach to tanker system by the single lines.




    1. vehicle-mounted level meter probe

    ● Model: SYW-A

    ● Installation : Flange installation

    ● Installation dimensions:DN80 DN100

    ● Power Supply : DC12~30V

    ● Measurement Accuracy : ±0.5mm

    ● Electronic Bay:100mm

    ● 304 stainless steel sleeve,both bottom and top need make the single hole

    ● Floater material :one stainless steel floater,one plastic floater


    2,Explosion-proof level meter displayer

    ● Can control 1-2 oil bunker at the same time ,with explosion-proof cage ,low temperature resistant (-40℃)

    ● It can real-time display the oil level ,temperature ,and oil tank volume

    ● With dynamic columnar graphically display the change of oil level change ,and keys operation

    ● Tank volume inset point by point ,the memory card support computer introduction

    ● It can built-in GSM short message module,When the liquid level falls continuously,send message to remind.

    ● Set aside one RS-232 communication port


    Liquid Level Meter Console Performance Indicators

    Power SupplyDC12~30V
    Work temperature/ Humidity-40℃~60℃/20%~85%
    DisplayOLED display
    Guard GratingPower guard grating Communication guard grating
    Boundary Dimension118x100mm
    Show/input modeChinese/English, columnar graphics
    Automatic monitoringCan simultaneous monitoring 1-2 oil tank parameters
    AutoweighingReal-time display, temperature, oil level vacancy volume, columnar dynamic graphical display oil level changes
    Tank Capacity Table Editorbuilt-in memory card ,can make the copy from the computer to tank capacity table ,then use it directly
    Port

    Set aside one RS-232 communication port



    The standard configuration details

    categorynamemodelquantityremark

    Product

    Magnetostrictive probeSYW-A1DN80flange installation
    stainless protecting jacket3041according the tank size to make the oil hole at up and down place
    Explosion-proof level meter displayerGH-XC-21OLED displayer,low temperature resistant (-40℃) ,can display level meter,temperature,volume,communication state.Set aside one RS-232 communication port

    attachment

    Explosion-proof hose


    DN202Connect level meter displayer
    IIB IIC e DIPDN201Connect level meter probe
    Upload data line1Connect tanker
    Bolt,ground lead and so on1

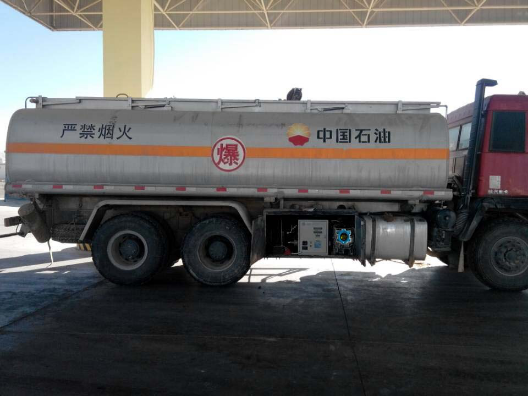

    Installation Picture for vehicle-mounted level meter


    Our service

    1. Provide necessary conditions for the customers visiting factory.

    2. Good quality with competitive price.

    3. All products have been strictly Quality Checked before shipping.

    4. Free repair within 12 months.

    5. Great after-sale service and offer solution within 24 hours.

    6.OEM is ok.
