Petrol station Automatic Tank Gauge manufacturer. sally@guihecekong.com +8618669782630
7 Years
| Ask Lasest Price | |
| Brand Name : | Guihe |
| Model Number : | TCM |
| Certification : | PCEC Explossion proof certification |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000SETS per month |
| Delivery Time : | 5-7 working days |
Remote Tank Level Monitoring System Modbus Water In Fuel Sensor For
Gas Service Station

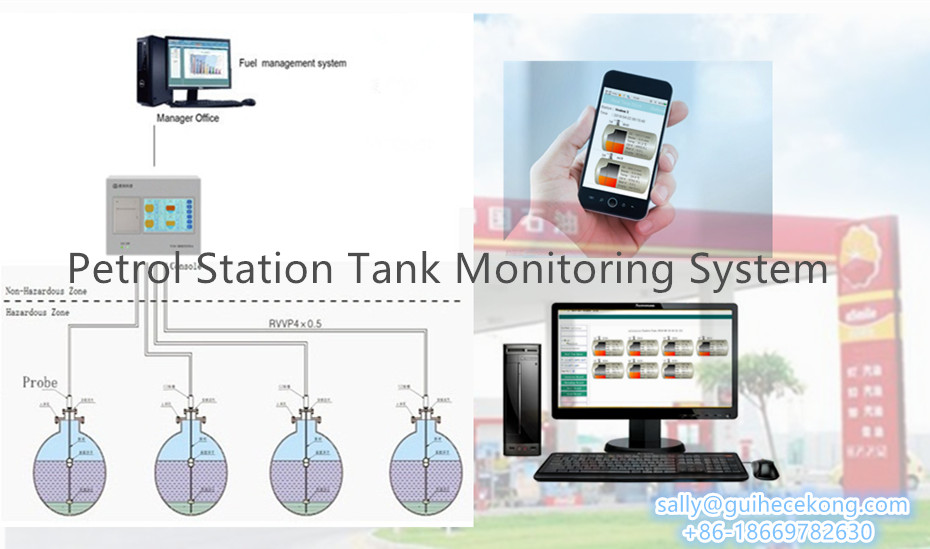

The magnetostrictive liquid level gauge is divided into two parts:
probe and touch console.
The probe is installed in the tank area. One tank is equipped with
one probe. The magnetostrictive technology can accurately measure
the oil level, water level and multi-point temperature in the tank.
The touch console is installed in the control room and can be
automatically collected. And processing probe data, real-time
display of tank information, realizing static leak detection,
automatic oil unloading, record inquiry, oil level alarm, data
uploading and other functions, combined with other information of
the petrol station, providing accurate oil products for gas
stations , sales, deposit management.
One gas station is equipped with one console; the tank area is
connected to the control room by a communication cable, and the
explosion-proof level of the liquid level gauge is intrinsically
safe.
Guihe level gauge consists of a series of touch consoles and SYW-A
probe. The probe uses magnetostrictive technology to accurately
measure the oil level, water level and multi-point temperature in
the tank. The touch console series can automatically collect and
process probe data, display tank information in real time, realize
dynamic and static leak detection, automatic oil discharge, record
inquiry, oil level alarm, data upload and other functions to
provide accurate gas station. Oil products are imported, sold and
stored.

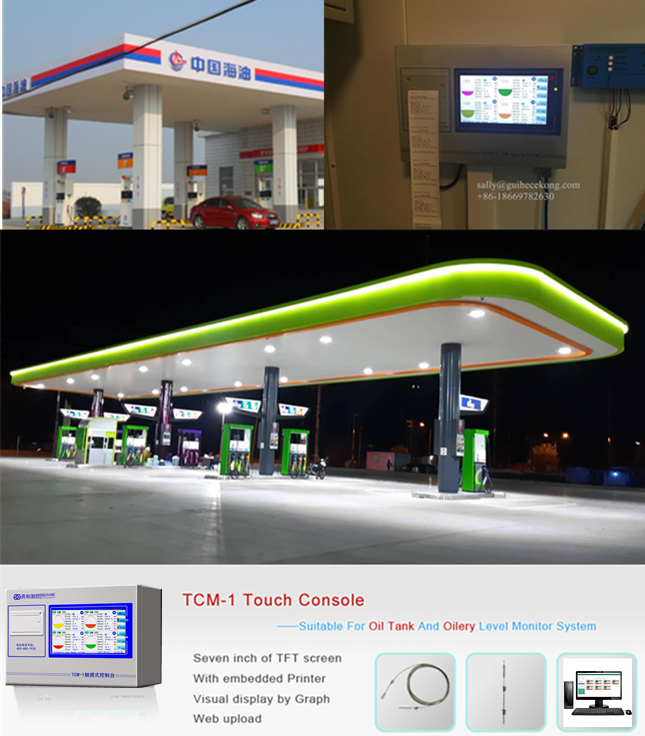

Magnetostrictive Probe (SYW-A ) Touch Control Console (TCM-1)
Functions
| Display | English Language, Graph, Colored |
| Monitoring Capability | 8 tanks or 12 tanks |
| Method of Communication | RS-485 |
| Relay | With 2 relay |
| Print Function | User can print all kinds of reports |
| Network Function | Inquiring data in long-distance through internet |
| Explosion-proof Ringer | Avoiding the product spilled |
| Control the Oil Pump | Avoiding the product spilled and pump down |
| Automatic Gauge | Display product level, water level, temperature, volume, ullage .. |
| Interface | With one RS-232 serial interface communication ports |
After connect with internet, Users can check petrol station tank
gauge information on mobile phone or PC anywhere anytime.
The following preparation should be down before the liquid level
meter installation.
Q: Are you trading company or manufacturer?
A: We are original manufacturer.
Q. How to choose suitable probe length for tanks?
A: Note: The probe length usually we called is only probe rod
length, not include probe head.
You should know the height of tank, manhole (if have) and riser
pipe(if have).
Final probe length shall be determined according to the actual tank
condition.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q. What is your terms of packing?
A: Generally, we pack the tank gauge in wooden box, or pack
according to customers special request.
Q: How long is your delivery time?
A: Generally, it will take 5-7 days after receiving your advance
payment. The specific delivery time depends on the items and the
quantity of your order.
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
|
|
