Petrol station Automatic Tank Gauge manufacturer. sally@guihecekong.com +8618669782630
7 Years
| Ask Lasest Price | |
| Brand Name : | Guihe |
| Model Number : | SYW-A1 |
| Certification : | PCEC Explossion proof certification |
| Price : | USD99-1000/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000PCS per month |
| Delivery Time : | 5-7 working days |
Guihe SYW series magnetostrictive probe take advantage of Wiedemann
effect, Villari effect and Ultrasonic effect of intelligent
material, by measuring time value difference which can be easily
measured with high-precision, to convert to displacement
difference, can accurately measure the product level, water level,
and temperature for individual tanks.
1. Magnetostrictive level sonsor (SYW-A )
●The probe consist of:
Fully enclosed magnetostrictive probe.
Electronic Pod using for data measuring and transforming.
Floater made according to the product.
●Features:
●Probe Performance
| SPECIFICATIONS FOR SYW-A TANK GAUGE PROBE | |
| Power supply | +24~26VDC |
| Precision | ±0.3mm |
| Repeatability | ±0.1mm |
| Resolution of product level | 0.023mm |
| Resolution of water level | 0.3mm |
| Operating temperature range | -40℃~70℃ |
| Points of temperature measured | 5 |
| Maximum communication distance | 1200m |
| Communication mode | RS485 |
| Mark of explosion proof | ExiaⅡAT4 Ga |
| Protection grade | IP67 |
| Measure range | 600-40000mm |
| Principle of measurement | Magnetostrictive measurement techonlogy |
•Can add density floater If need measure density.(Density measure
accuracy:±0.5%)

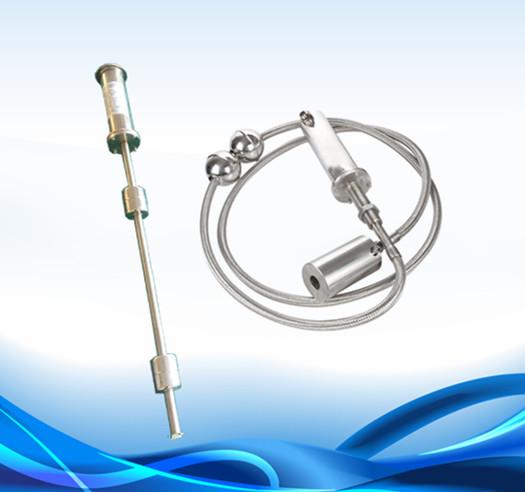

2. Flexible probe SYW-A1
●The probe consist of:
Fully enclosed magnetostrictive probe.
Electronic Pod using for data measuring and
transforming.
Floater made according to the product.
●Features:
Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC
Accuracy: level accuracy is ±1mm
Stability: strong anti-jamming ability
●Probe Performance
| Item | SYW-A1 |
| Purpose | To measure product level, water level and temperature |
| Titles of medium | Gasoline, diesel, kerosene, ethanol , water etc. |
| State of medium | Liquid |
| Explosion-proof grade | ExiaIIBT4 (Intrinsically safe) |
| Pressure range | -0.02Mpa~0.6Mpa |
| Temperature | -40℃～70℃ |
| Product Level Accuracy | ±1mm |
| Water Level Accuracy | ±1mm |
| Temperature Accuracy | ±0.2℃ |
| Height Resolution | 0.023mm |
| Repeatability | ±0.1mm |
| Temperature Effect | Error<0.2mm |
| Vibration Effect | Error<0.5mm |
| Lowest Product Inactive Zone | 2.5'' floater-180mm |
| Lowest Water Inactive Zone | 2.5'' floater-25mm |
| Measured Variable | Product level, interface level and temperature of 5 sensors and average temperature |
| Probe Length | 4000-12000mm |
| Method of Communication | RS-485 |
| Power Supply | +24～26VDC |
Installation:
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
Qingdao Guihe Measurement & Control Technology Co., Ltd was founded
in 2002, is a professional manufacturer of petroleum equipment. We
specialized in producing Magnetostrictive liquid level meter (tank
gauging system), Underground fuel tank volume table calibration
system, Double layer tank leakage detector, Double layer pipeline
leakage detector, Tank car liquid level meter, Human body
electrostatic discharge alarm. We also providing different
customers with personalized solutions.
|
|
