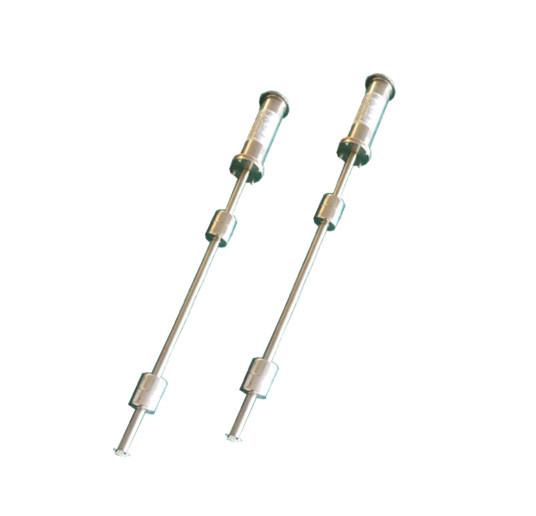

Guihe SYW series magnetostrictive probe take advantage of Wiedemann effect, Villari effect and Ultrasonic effect of intelligent material, by measuring time value difference which can be easily measured with high-precision, to convert to displacement difference, can accurately measure the product level, water level, and temperature for individual tanks.
Magnetostrictive level sonsor (SYW-A )
● The probe consist of:
Fully enclosed magnetostrictive probe.
Electronic Pod using for data measuring and transforming.
Floater made according to the product.
● Features:
● Probe Performance
| SPECIFICATIONS FOR SYW-A TANK GAUGE PROBE | |
| Power supply | +24~26VDC |
| Precision | ±0.3mm |
| Repeatability | ±0.1mm |
| Resolution of product level | 0.023mm |
| Resolution of water level | 0.3mm |
| Operating temperature range | -40℃~70℃ |
| Points of temperature measured | 5 |
| Maximum communication distance | 1200m |
| Communication mode | RS485 |
| Mark of explosion proof | ExiaⅡAT4 Ga |
| Protection grade | IP67 |
| Measure range | 600-40000mm |
| Principle of measurement | Magnetostrictive measurement techonlogy |
• Can add density floater If need measure density.(Density measure accuracy:±0.5%)
Preparations for Installation
1. View the goods to check the information of goods delivery.
2. Count the accessories according to the list in the accessory case and the file card of level gauge.
| Particulars and Use of Main Accessories | ||||
| Name of Parts | Specification | Unit | Quantity | Function of Parts |
| Probe | SYW-A | Gen | N (contract quantity) | Sensing part of level gauge |
| Touch console | TCM | Tai | X (contract quantity) | Display part of level gauge |
| Blind plate joint | G3/4 internal & external wire | Ge | N*1 | Used for blind plate sealing |
| Seal gasket | Φ23-Φ5-5 | Ge | N*5 | Used by all positions to be sealed |
| Reducing bend | G3/4 internal & external wire | Ge | N*1 | Used for connection of blind plate joint with anti-explosion hose |
| Inner connection | G3/4 | Ge | N*1 | Used for connection of anti-explosion box and anti-explosion hose |
| Anti-explosion hose | G3/4, 900 mm | Gen | N*1 | Soft connection |
| Anti-explosion box (two-head) | G3/4 internal wire | Ge | N*1 | Used for wiring in dangerous zones |
| Grounding wire (with wiring terminal) | 2 m | Gen | N*1 | Used for grounding of anti-explosion box |
| Bridging copper bar | －－－ | Piece | N*1 | Used for bridging between blind plate and flange |
| Aviation plug wire (with seal ring) | 2.5 m | Gen | N*1 | Communication line for probe |
| Upper separator and lower separator | －－－ | Set | N*1 | Used to ensure vertical probe and prevent from impacting |
| Lower gasket | －－－ | Ge | N*1 | For separation of probe from oil tank |
| Buckle | －－－ | Ge | N*1 | To prevent the floating ball from falling off |
| Wire joint | －－－ | Ge | N*5 | For wiring among communication lines |
| Ribbon | 3*150 | Gen | N*5 | To fasten 2m grounding wire |
| Anti-explosion mud | －－－ | KG | N*0.2 Kg | For sealing inside the anti-explosion box |
| Insulated tape | －－－ | Roll | 1 | Used when required for wiring of communication line |
| Fluid-level floating ball | YM | Ge | N*1 | Used by probe to measure the oil level |
| Gasoline floating ball | QS | Ge | Actual | Used by probe to measure the water level |
| Diesel floating ball | CS | Ge | Actual | Used by probe to measure the water level |
| Touching pen | －－－ | Zhi | X*1 | For operating console |
| Online communication line | 4*0.75 | Gen | 1 | For center control online (if any) |
| Expansion tube | －－－ | Ge | 4 | For fastening of wall surface |
| Cross wood screw | －－－ | Ge | 4 | For fastening of wall surface |
| 1. Interface floating ball QS + Interface floating ball CS = Fluid-level floating ball YM; | ||||
| 2. E.g., Φ23-Φ5-5, Φ23 is outer diameter of seal gasket, Φ5 is hole diameter of seal gasket and 5 is thickness of seal gasket. | ||||
Installation:
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
