Filling Station Explossion Proof Automatic Diesel Fuel Tank Level Measurement Sensor / Gauge
* Fuel tank level gauge consist of Magnetostrictive probe (mode:SYW-A, SYW-A1)and Touch screen control console (mode:TCM-1,TCC-3).
* SYW-A magnetostrictive probe installed in the tank, with
magnetostrictive technology,can accurately measure the fuel level
,water level,ullage and multiple temperature.
* Touch control console installed in the petrol station control room, it can automatically probe data acquisition and processing, real-time display tank storage information, realize the tank leak detection, automatic unloading, record query, control multi-channel submersible pump,oil level alarm, data upload, and other functions.
Magnetostrictive level meter (SYW-A )
● The probe consist of:
Fully enclosed magnetostrictive probe.
Electronic Pod using for data measuring and transforming.
Floater made according to the product.
● Features:
Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC
Accuracy: level accuracy is ±0.3mm
Stability: strong anti-jamming ability
Efficiency: less than 1 second to test one tank.
● Probe Performance
| Item | SYW-A |
| Purpose | To measure product level, water level and temperature |
| Titles of medium | Gasoline, diesel, kerosene, ethanol , water etc. |
| State of medium | Liquid |
| Explosion-proof grade | ExiaIIBT4 (Intrinsically safe) |
| Pressure range | -0.02Mpa~0.6Mpa |
| Certificate | PCEC Conformity Certificate of Explosion-proof |
| Temperature | -40℃～70℃ |
| Product Level Accuracy | ±0.3mm |
| Water Level Accuracy | ±0.3mm |
| Temperature Accuracy | ±0.2℃ |
| Height Resolution | 0.023mm |
| Repeatability | ±0.1mm |
| Temperature Effect | Error<0.2mm |
| Vibration Effect | Error<0.5mm |
| Lowest Product Inactive Zone | 2.5'' floater-180mm |
| Lowest Water Inactive Zone | 2.5'' floater-25mm |
| Measured Variable | Product level, interface level and temperature of 5 sensors and average temperature |
| Measure Range | 600~4000mm |
| Method of Communication | RS-485 |
| Probe Material | 1Cr18Ni9Ti |
| Power Supply | +24～26VDC |
| Protection Class of Probe Canister | IP67 |
| Max Communication Distance | 1200m |
• Can add density floater If need measure density.(Density measure accuracy:±0.5%)

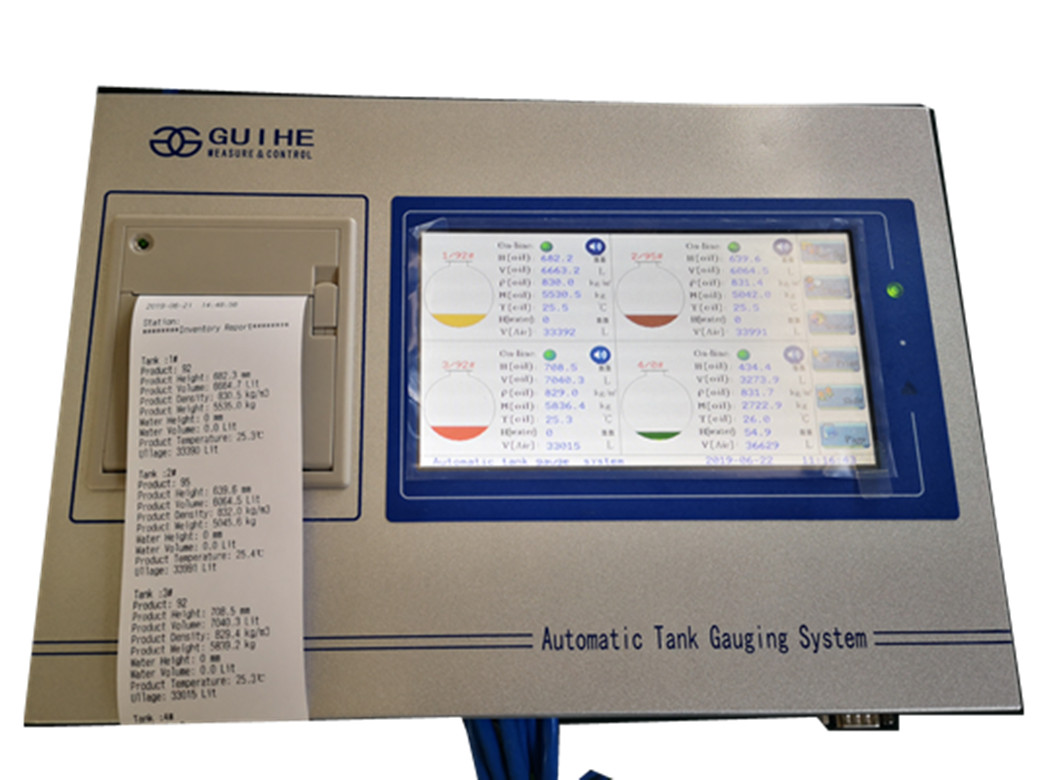

TCM-1 ATG tank gauge console
Tank gauge console is the tank monitor, one key part of the complete automatic tank gauging system. With the tank monitor, you can watch the detail information of underground storage tanks or aboveground storage tanks, like product level, water level, temperature, (fuel density) etc. It is also the communication display platform between ATGs and users. Configurations like alarm value, tank information, etc, also can be user-defined.
Guihe tank gauge console have open communication protocol to fuel management system.
TCM-1 tank gauge console is an enhanced console in Guihe console family. It offers a multi-function operation platform on colorful touch display. High-accuracy and strong data process ability, greatly improve the management efficient and save costs! The reliable performance have highly reputations from thousands station owners.
Installation:
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
l A professional engineering team with 15 Years R&D experiences
l 80% Market share in China Mainland market for ATGs
l More than 1000k Units shipped per year
l One-stop Solution for petrol station ATGs
l Quick response in goods supply and post-sales support
l Globally distributed customers including China Mainland, Korea,
India, America, Europe, etc
|
|
