    Gas Station RS485 Oil Level Real Time 316L Tank Gauge Console

    Ask Lasest Price
    Brand Name : Guihe
    Model Number : TCC
    Certification : PCEC Explossion proof certification
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000PCS per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Gas Station RS485 Oil Level Real Time 316L Tank Gauge Console

    Real Time Fuel Tank Monitoring TCC-3 Tank Gauge Console With Leak Detector


    Product Description

    Whenever & wherever you want the accurate inventory of furl assets, all tanks information are here!


    TCM-1 smart tank gauge console is a fully featured console which designed for do more for fuel assets owners in future. Base on the basic function that offer accuracy measuring and reliable monitoring performance to help user manage fuel assets better, protect assets against stolen and saving cost!



    TCC console can work together with Leak detection sensors and density probe.


    Benefits of Gas Station tank level gauge ATG

    Gas Station tank level gauge ATG consists of smart tank level gauge console and magnetostrictive probe and leak detector. By this system, station owner can monitor fuel assets inside tanks in real time and also can receive in-time alarm if oil theft or leakage.


    Smart Tank gauge console is the process center and data display center. It has 7'' colorful touch screen, support TCP/IP communication.


    It can be installed in underground storage tanks and above storage tanks, and also can be used in chemical tanks.

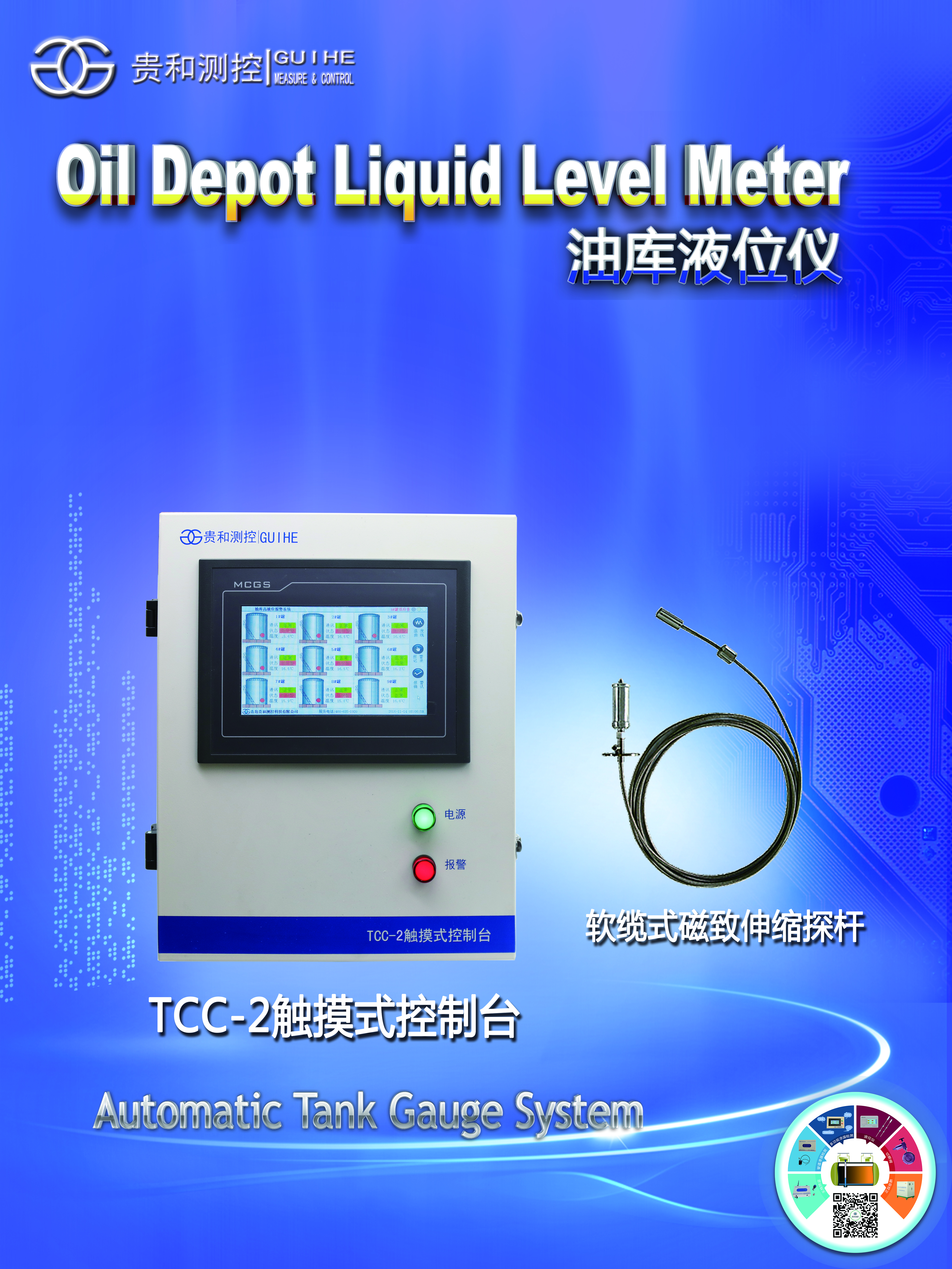

    TCC-3 Smart Console


    TCC Touch Control Console
    Parameters
    Power Supply VoltageAC120~265V 50HZ
    Environmental Temperature-20℃~60℃
    Environmental Humidity20%~85%
    Display Screen7 inch real colorful touch screen
    Processor / MemoryHigh-speed embedded / ---
    Hard Disk / CF---
    Safety BarrierPower safety barrier, communication safety barrier
    Power-off protection---
    Size300mm×360mm×120mm
    Functions
    DisplayEnglish, Graph, Colored
    System LanguageEnglish
    Monitoring Capability1-16tanks
    RelayWith 2 relays
    Method of CommunicationRS-485
    Tank Inventory ReportUsers can inquire inventory information at any moment.
    Auto DeliveryAuto delivery monitoring, and reports are generated after delivery. Users can inquire reports.
    Manual deliveryClick the “start delivery”, it will create delivery report
    Print FunctionUser can print all kinds of reports
    Network FunctionInquiring data in long-distance through internet.
    Outside Explosion-proof RingerAvoiding the product spilled.
    Setup/Inquiry ParameterUsers can setup and inquiry the parameter about the tank, hardware, product type, alarm, date, tank volume table
    Automatic GaugeDisplay product level, water level, temperature, volume, ullage
    AlarmAudible and visual alarm and inquiry function
    Shift ExchangeShift exchange function and create the report.
    InterfaceWith one RS-232 serial interface communication ports,one internet port



    Specification of magnetostrictive fuel level probe


    ItemTechnical index
    ApplicationMeasuring fuel level, interface, density (Optional)and temperature of fuel tank
    Power supplyDC24V
    Range1~5m
    Precision±0.3mm
    Repeatability±0.1mm
    Oil level resolution±0.0069mm
    Interface resolution±0.0069mm
    Operating temperature range-45~85℃
    Maximum communication distance1200m
    Communication modeRS485
    Protection gradeIP67

    Gas station mobile phone management system




    At home, on the road or even you are aboard , only need a smart phone, you can control all your stations by yourself at any time, anywhere, calmly deal with petrol station management details. Now we highly launched the petrol station management mobile application system , it can achieve real-time monitoring of petrol station tank storage informationall by mobile phone.

    Our service

    1. Provide necessary conditions for the customers visiting factory.
    2. Good quality with competitive price.
    3. All products have been strictly Quality Checked before shipping.
    4. Free repair within 12 months.
    5. Great after-sale service and offer solution within 24 hours.
    6.OEM is ok.

    Company Information

    Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.

    Products are independent R&D production,and achieved many national invention patents ,Implement the concept of customer needs first. Cost effective products and good service win the customs trust and support. In future ,we will continuously make exploration and innovations,and focus on the product development and the utilization of the technology to improve our quality and offer a compete range of new products for the customers.We are willing to conduct extensive cooperation with companies ,we sincerely hope to become your trustworthy partner!
