Petrol station Automatic Tank Gauge manufacturer. sally@guihecekong.com +8618669782630
7 Years
| Ask Lasest Price | |
| Brand Name : | Guihe |
| Model Number : | TCM-1 |
| Certification : | PCEC Explossion proof certification |
| Price : | USD1-5000/SET |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000SETS per month |
| Delivery Time : | 5-7 working days |

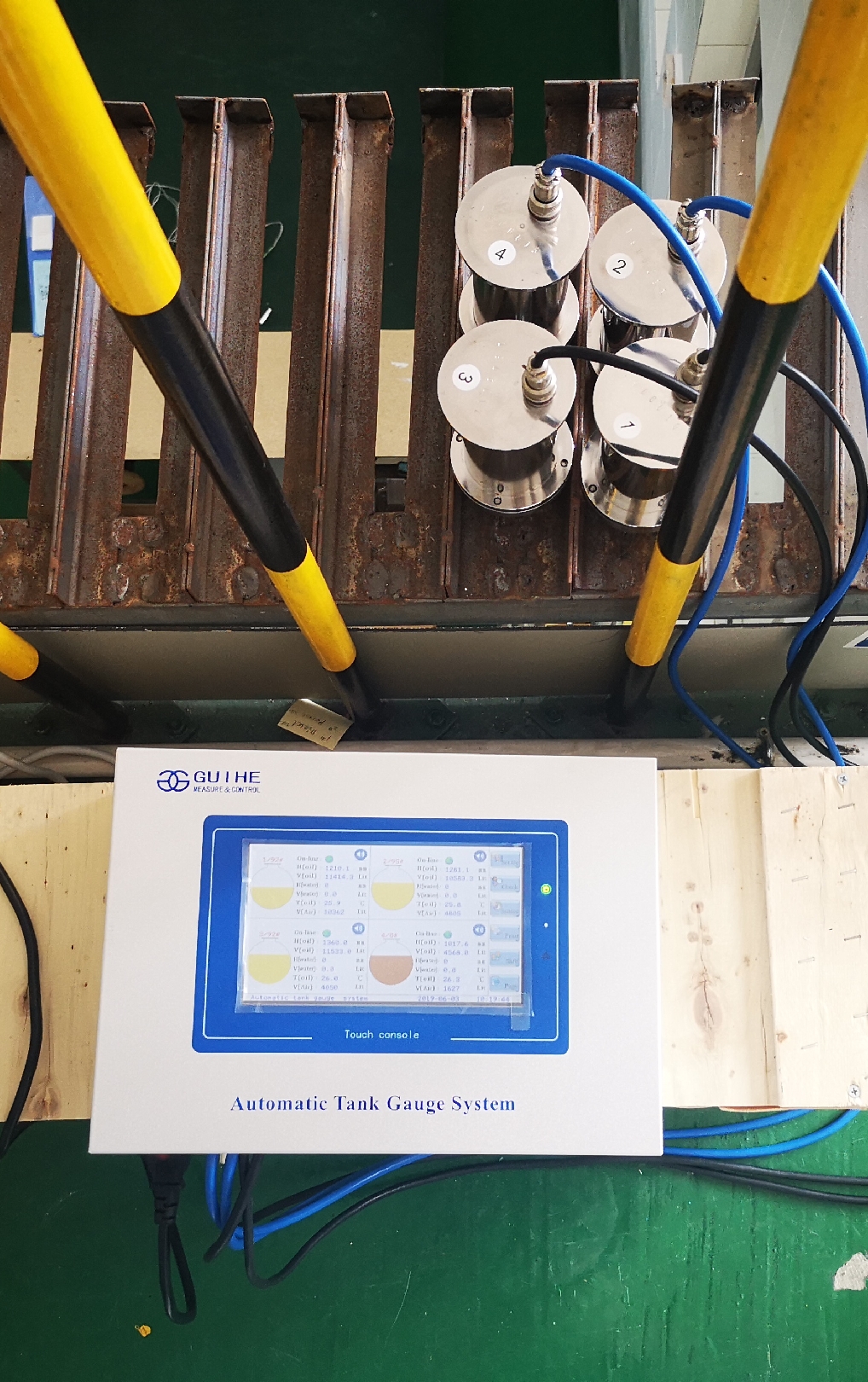

ATG tank gauge smart console is a powerful product developed and produced by Guihe. Together with SYW series magnetostrictive level probe constitute the complete automatic tank gauge system.
Details:
Automatic Fuel Tank Gauge Systems
Whenever you need accurate inventory, delivery & unloading data, all are here!
Automatic Measurement : oil level; water level; temperature; volume;
Scientific Management : Shifting of duty; Oil reload record; report generation and print
Security Surveillance : high or low oil level empty tank problems will not happen; water level; *temperature monitoring and warning system.
Environmental Monitoring : Oil leak detecting and warning system
Data Sharing : Automatic data transfer with other information system, to expend management function solutions
Tank Gauge System Solution Solution = Probe + Console
Console with touch screen
Function:
Accurately monitoring the delivery, unloading and inventory of oil in the tank
User defined Alarm and system auto alarm
Can set the parameter directly through Console
It can be connect to the PC , can monitoring the delivery,unloading and inventory of oil in the tank on the PC by PC Remote, print on PC
All the data and report can be exported, and can be save in PC files
| Power | AC220V ±10%, 50/60Hz |
| Working temperature | -20 to 60℃ (-4 to 140F) |
| Display | 7-inch LCD touch screen |
| Ex-proof grade | [EX ia Ga] IIA |
| Monitor probes | Standard is 8,Up to 12, |
| SMS module | Optional |
| GPRS module | Optional |
| Running/Alarm indicator | Yes |
| Inventory and delivery management | Yes |
| Density and mass measurement | Optional |
| Output voltage | DC 24V |
| Safety barrier | Yes |
| Built-in printer | Optional |
| RS232 port | 1 |
| USB port | 1 |
| Buzzer alarm | Yes |
| External sound-light alarm | optional |
| Reports | Inventory, delivery, shift, alarm, leak detection test |
| Dimension (L*W*H) | 31*22*18 cm |
● Standard measurement unit, mm or inch, liter or gallon, meet different requirements from different countries.
● Display product volume and water volume, empty volume, product level and water level, and product temperature for individual tanks.
● Reports include current inventory, delivery history, alarm, shift, leak.
● Operating language support English, can be customized.
● Support import & export data, tank volume table import, very convenient for console configuration.
● Monitor up to 12 probes (tanks). Standard configuration is 8 probes.
● Printing reports by optional built-in printer.
● Automatic alarm function can show any abnormal status of tanks.
● Support standard static or dynamic leak detection on 0.38 L/H or 0.76 L/H.
● Optional density probe can monitor product quality. Fuel density can be shown in real time on the console.
● Open communication protocol, can connect to the central control system of mainstream fuel dispensers, totally satisfy management demand of oil retail companies.
● APP support Android and IOS system, monitor tank information remotely in real time.
1:How long will you give me the reply?
we will contact you in 2 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as
soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO, we could send the certification
test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the
best quality and lowest factory price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us
and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6.OEM is ok.
Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
Products are independent R&D production,and achieved many national invention patents ,Implement the concept of customer needs first. Cost effective products and good service win the customs trust and support. In future ,we will continuously make exploration and innovations,and focus on the product development and the utilization of the technology to improve our quality and offer a compete range of new products for the customers.We are willing to conduct extensive cooperation with companies ,we sincerely hope to become your trustworthy partner!
|
|
