Fueling Station Tank Monitoring Digital Fuel Level Gauge Atg System
Automatic Tank Gauging

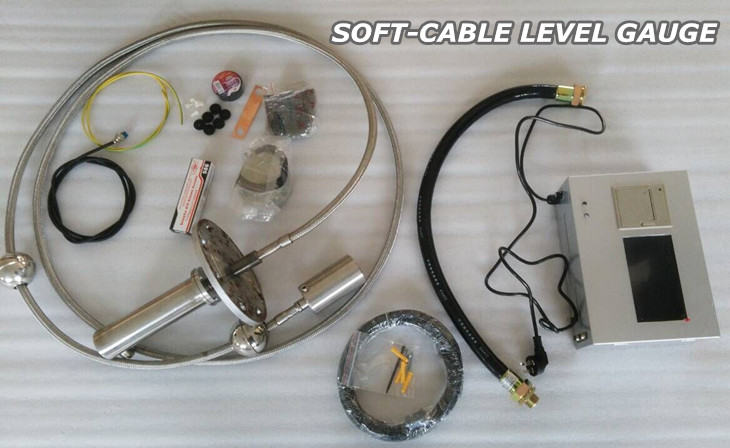

Guihe fuel tank probes are installed into bulk fuel tanks for automatic reading of volume, water, temperature and mm. Readings are taken periodically and at every level increment. Deliveries are also automatically detected.
Tank Gauging Features
| Item | Technical |
| Application | Measuring oil level, interface, density and temperature of oil tank |
| Power supply | DC24V, 50mA |
| Range | 1000~4500mm |
| Precision | ±0.3mm |
| Repeatability | ±0.1mm |
| Oil level resolution | ±0.0069mm |
| Interface resolution | ±0.0069mm |
| Density accuracy | 1kg/m³ |
| Operating temperature range | -45~85℃ |
| Maximum communication distance | 1200m |
| Communication mode | RS485 |
| Point of temperature measured | 5 |
| Protection grade | IP67 |
| Item | Technical |
| Power | AC220V 0.1A 50HZ |
| Working temp. | -20~60℃ |
| Monitor tanks | Standard 8, up to 12 |
| Display | 7” LCD touch screen |
| Ex-proof grade | Ex ia Ga IIA |
APP & Web check for mobile phone
1:How long will you give me the reply?
we will contact you in 2 hours as soon as we can.
2:Could I get samples?
Yes,we have materials in stock to help you to get the samples as
soon as we can.
3:How about the quality of the magnets?
We have the certification of ISO, we could send the certification
test of our company to you.
4:How is the price?
As we believe the quality is the most important,we will provide the
best quality and lowest factory price.
5:Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us
and we will try our best to satisfy you.
6:Could I visit your factory?
Of course,if you need we will help you to visit our factory.
1. Provide necessary conditions for the customers visiting factory.
2. Good quality with competitive price.
3. All products have been strictly Quality Checked before shipping.
4. Free repair within 12 months.
5. Great after-sale service and offer solution within 24 hours.
6. OEM is ok.
Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
